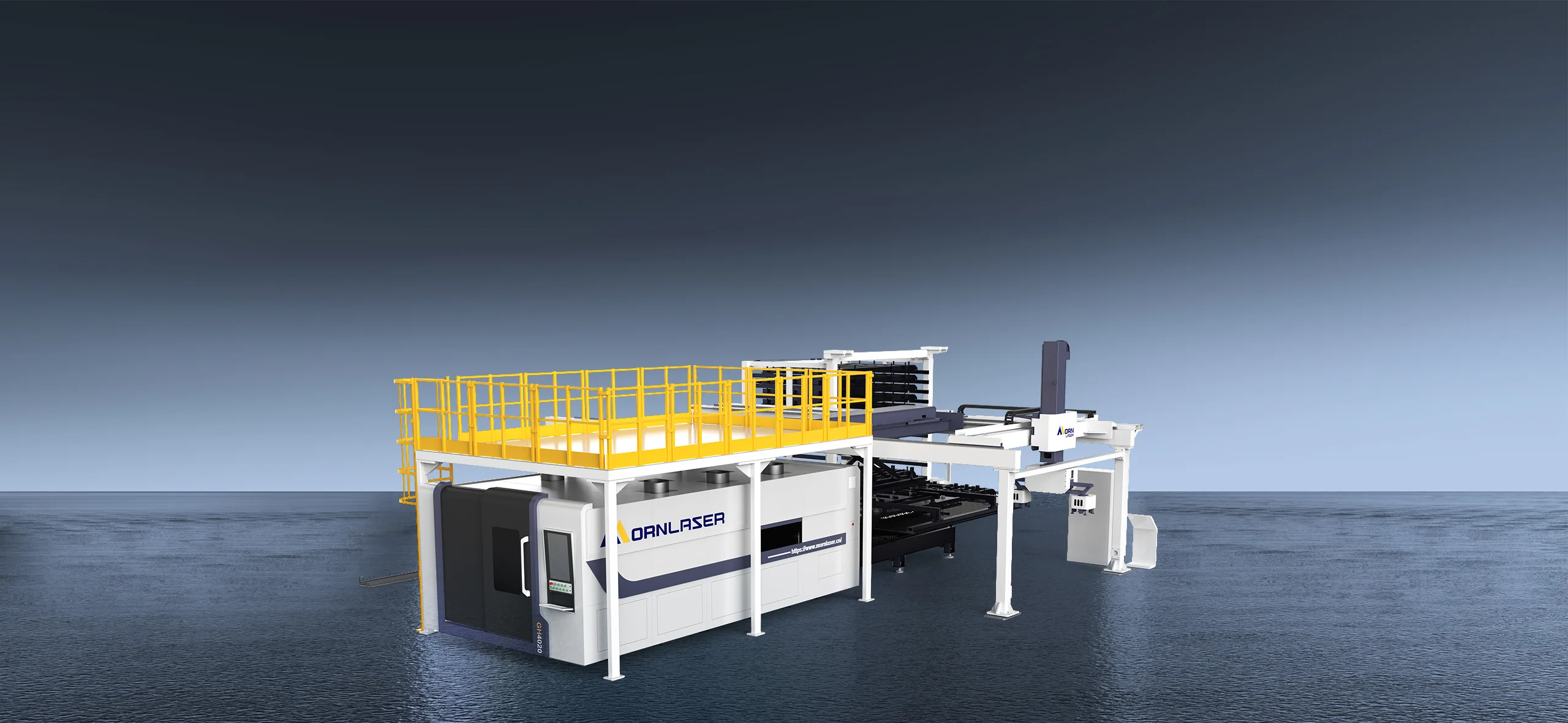

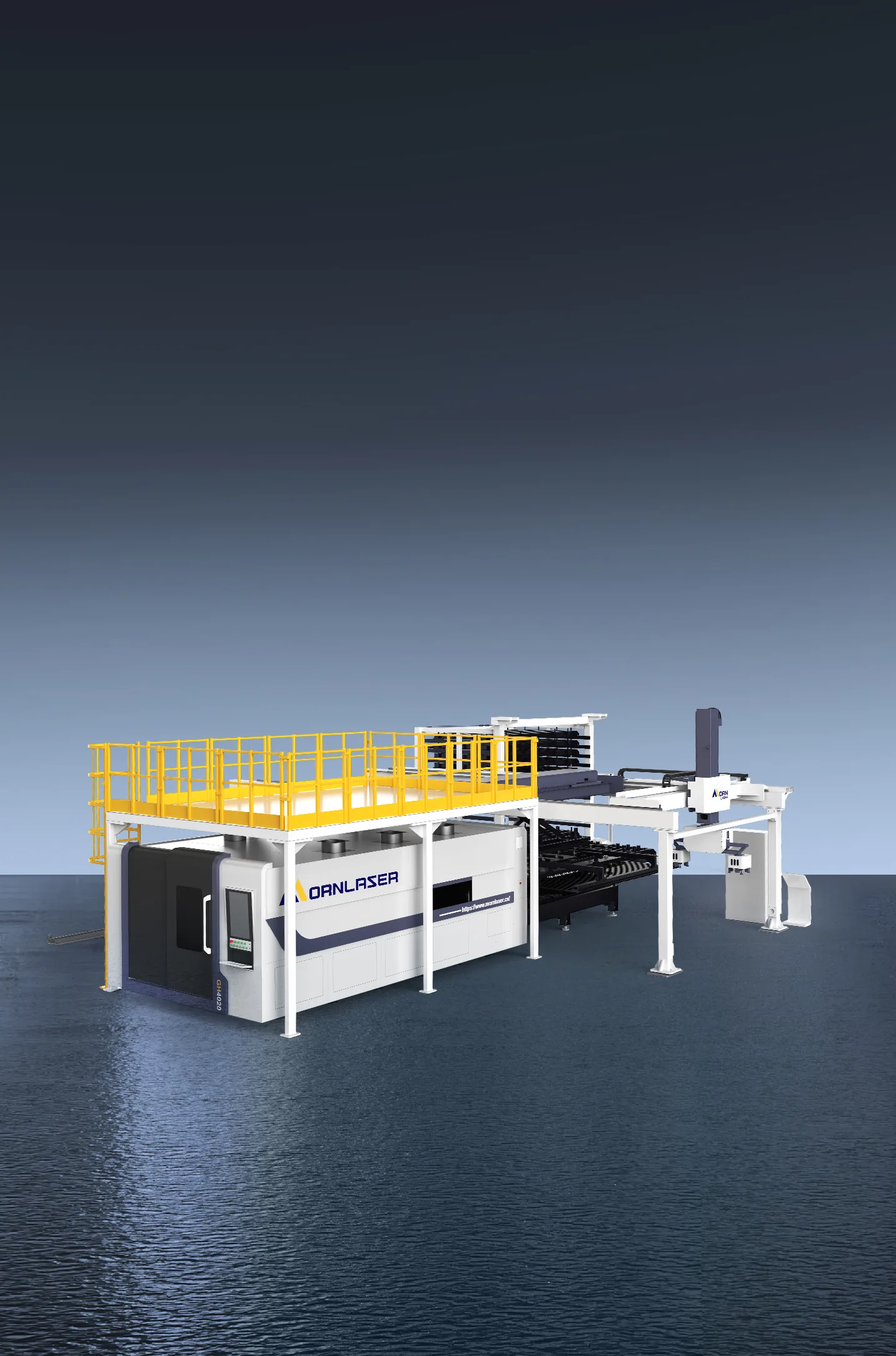

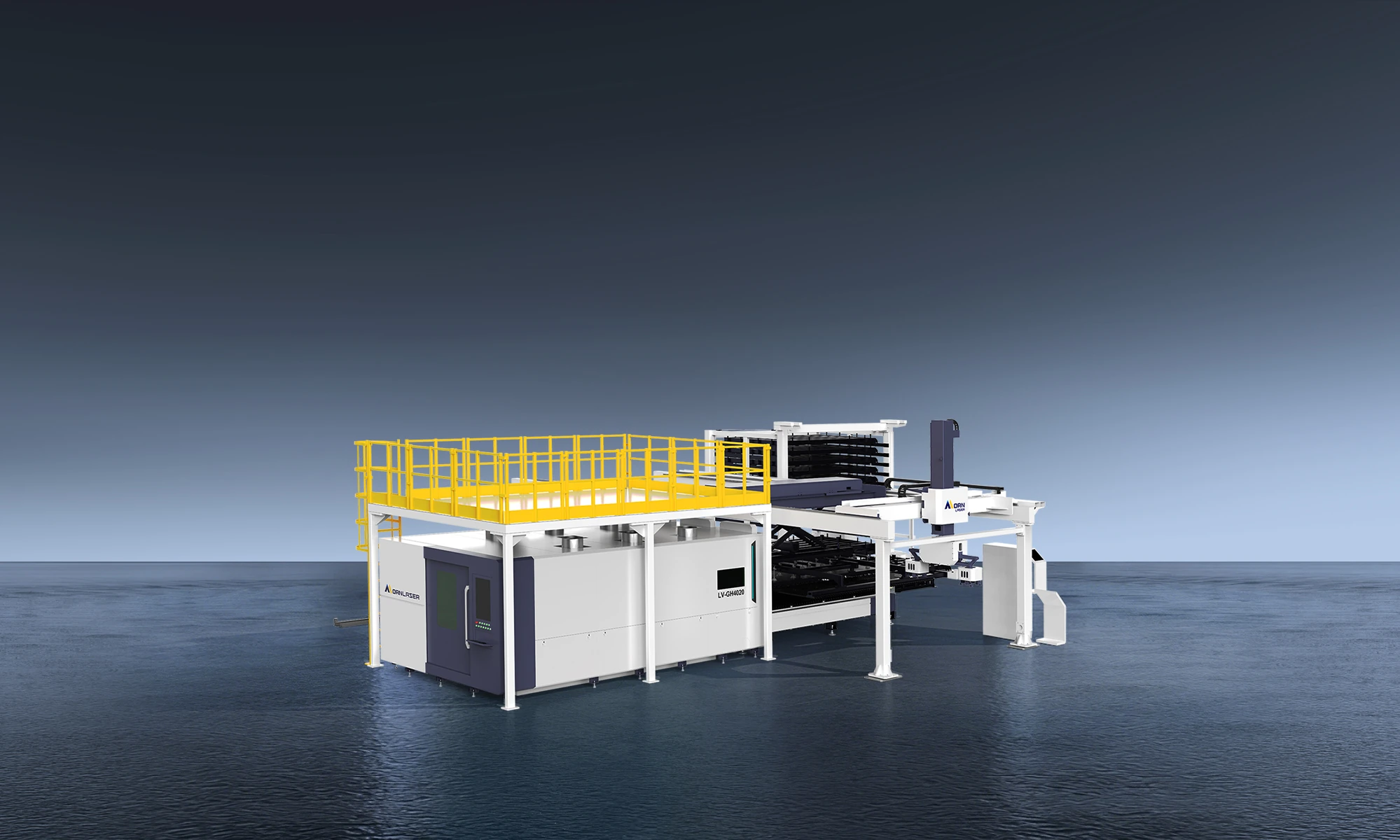

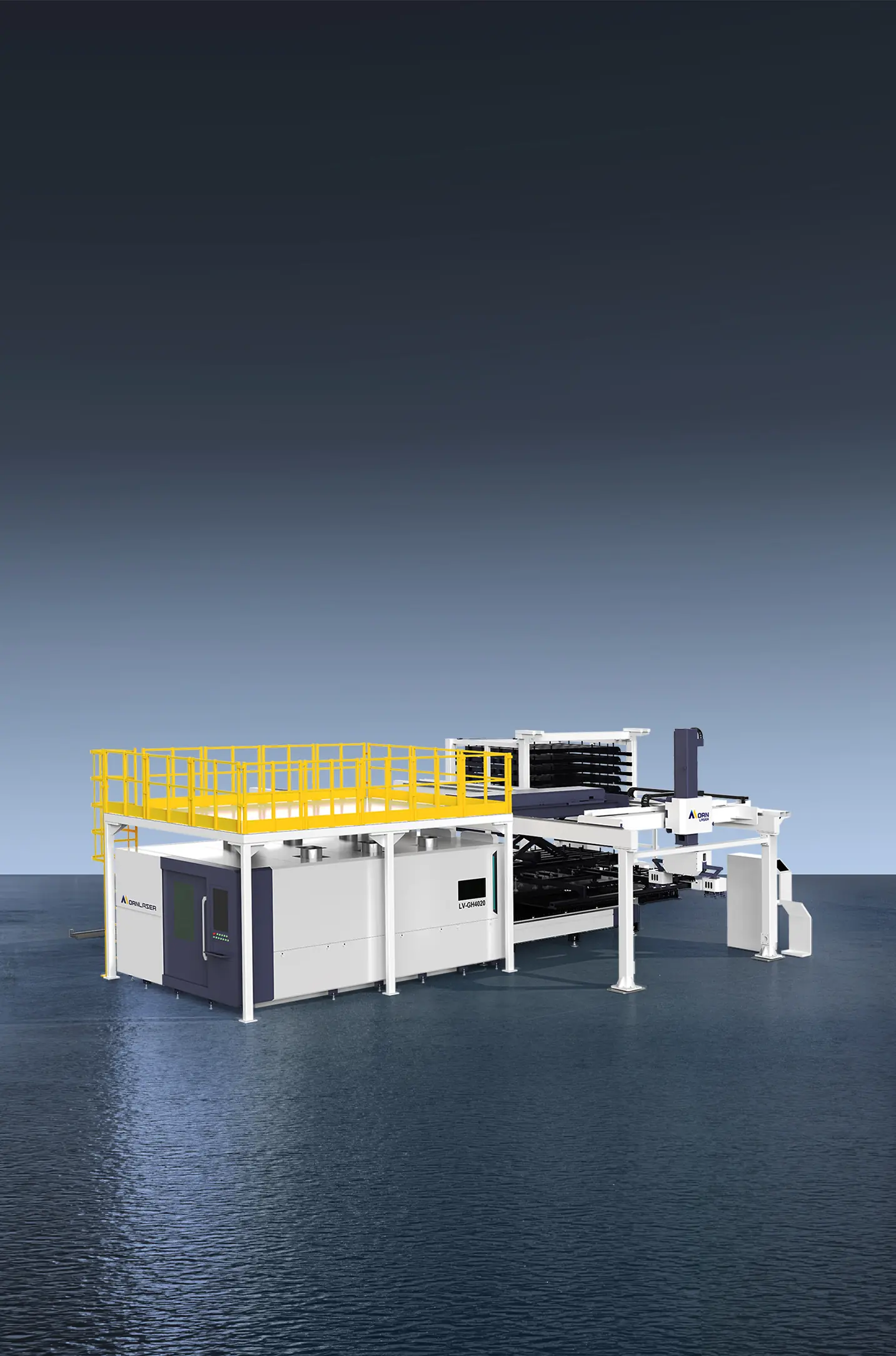

Equipped with BIPOD sorting grippers, offering a powerful maximum gripof 240kg and precise handling of 1-25 mm plates, reducing unloadingtime by 60%!
One-click start and fully automated task execution,effectively saving 3-4 operators and reducing laborcosts by 80%!
Seamless integration with factory ERP, MES, and AGVsystems for production task management, real-timemonitoring, and automatic reporting.
The machine is equipped with a complete software suite, covering nesting.material warehouse management, cutting execution, sorting, stacking andintelligent master control, forming a fully integrated system.
4-15 levels (adjustable according to customer requirements)
Maximum load capacity per cargo space: 5 tons
Allowable stacking sheet size: 3000mmx1500mm, 4000mmx2000mm, 6000mmx2500mm
Servo-driven system with positioning accuracy of +0.5 mm
High-density vacuum matrix suction cups, providing full coverage of the gripping area
Automatic sheet separation and cornering device
Single-sheet detection device
Power-off and air-off anti-fall function
Maximum gripping force: 240Kg
Positioning accuracy: +0.5mm
Maximum gripping size: 2500mmx1000mm
Minimum gripping size: 150mmx150mm
Multi-axis linkage for fast and efficient operation
Automatically generates gripper pick-up positions
Automatic planning of gripper sorting paths
Automatic generation of stacking position data
Model | GH3015 | GH4020 | GH6015 |
|---|---|---|---|
Robot Types | Independent Manipulator | Compound Manipulator | Compound Manipulator |
Sorting by PlateThickness | 1-14mm | 1-16mm | 1-25mm |
Number of Tiers | 10 tiers (customizable) | 10 tiers (customizable) | 10 tiers (customizable) |
Max. Suction Weight | 500KG | 1000KG (weight-based selection) | 2000KG (weight-based selection) |
Octopus gripper selection:M002B2510 (Standard) | Max. gripping size: 2500mm*1000mm Min. gripping size: 150mm*150mm Max. gripping weight: 240KG | Max. gripping size: 2500mm*1000mm Min. gripping size: 150mm*150mm Max. gripping weight: 240KG | Max. gripping size: 2500mm*1000mm Min. gripping size: 150mm*150mm Max. gripping weight: 240KG |
Max. Net Load per Layer | 3000KG | 5000KG | 5000KG |
