Integrated bevel cutting technology significantly reduces secondary processing steps, improving overall production efficiency by up to 75% compared with traditional machining methods.
Advanced motion control and high-performance laser components ensure stable cutting accuracy and consistent processing quality for complex parts.
Completes bevel cutting in a single process without additional machining, delivering smooth edges and weld-ready parts directly from the machine.
Optimized cutting algorithms and an intelligent control system enable faster cutting speeds, stable performance, and efficient processing for high-volume industrial production.

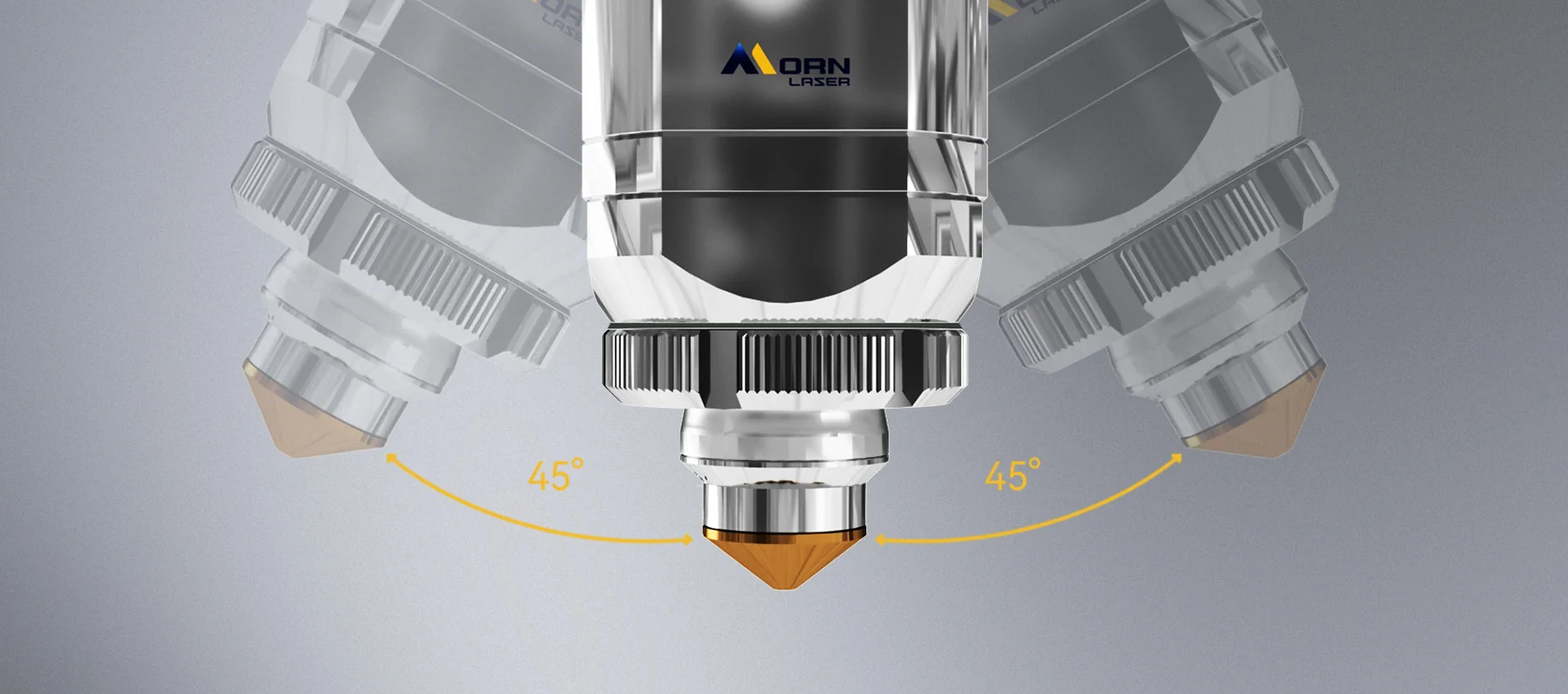

+45° Bevel Cutting Capability
Supports up to +45° bevel cutting, enabling accurate bevel preparation directly during the cutting process. It eliminates additional machining and improves overall processing efficiency by up to 75% compared with traditional methods.

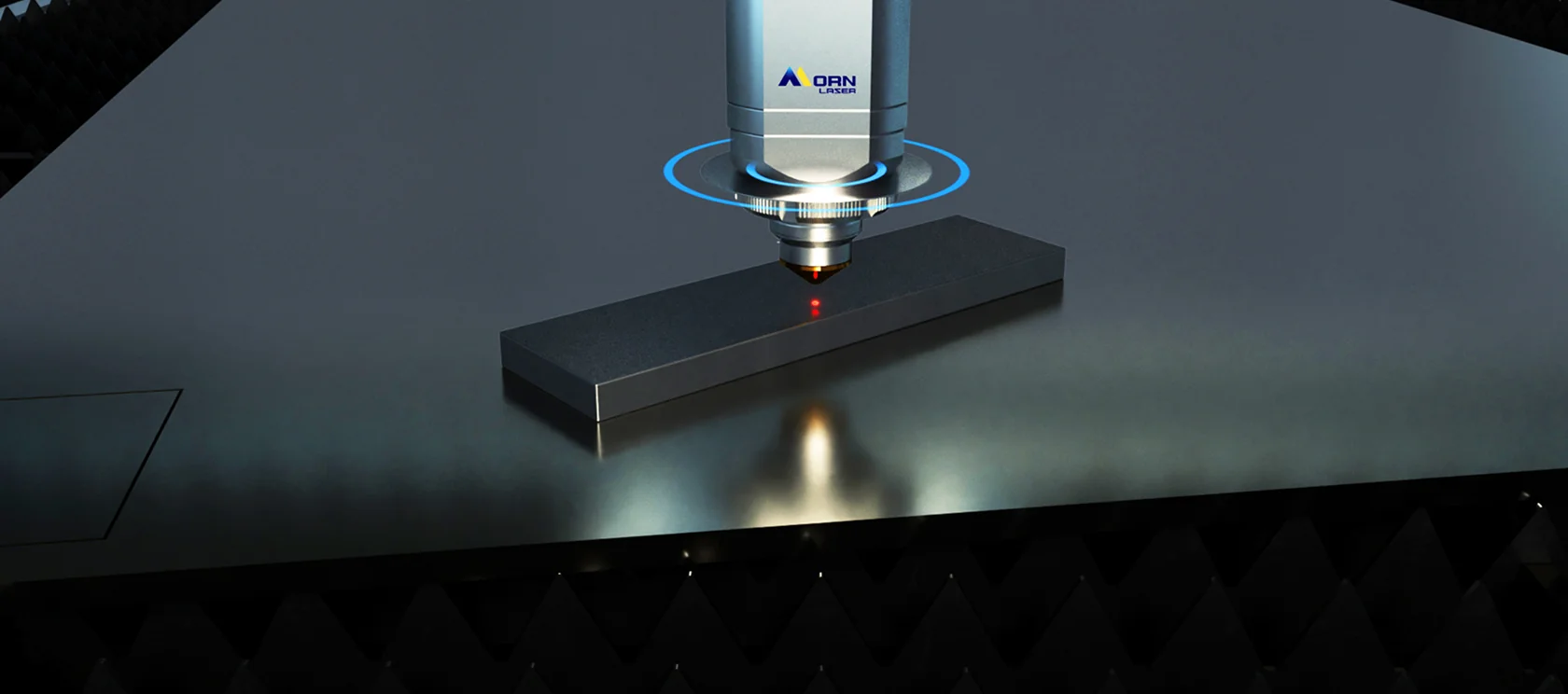

An intelligent collision avoidance system detects obstacles during machine travel, effectively protecting the cutting head and ensuring safe and stable operation.

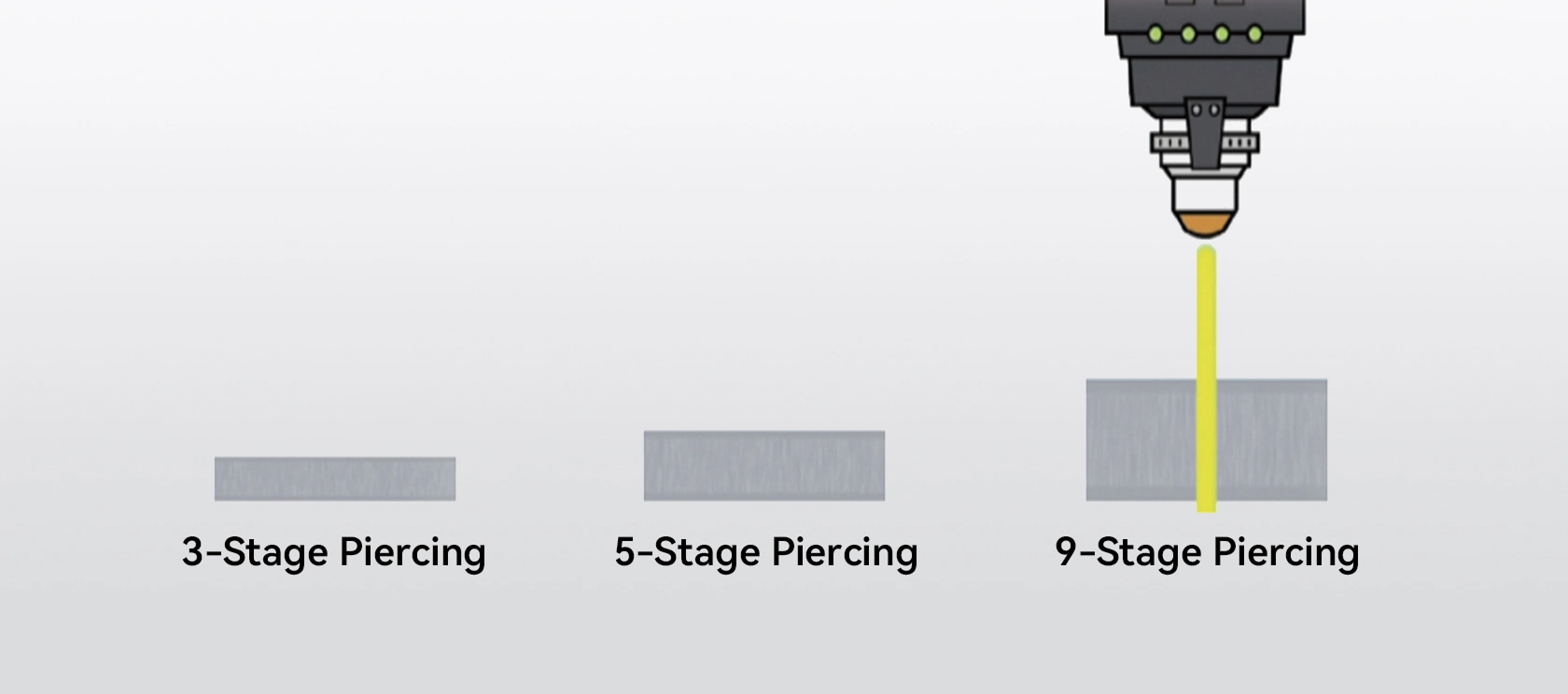

The advanced 9-stage piercing process optimizes parameters step by step, enabling faster piercing with reduced spatter and improved cutting quality on thick plates.

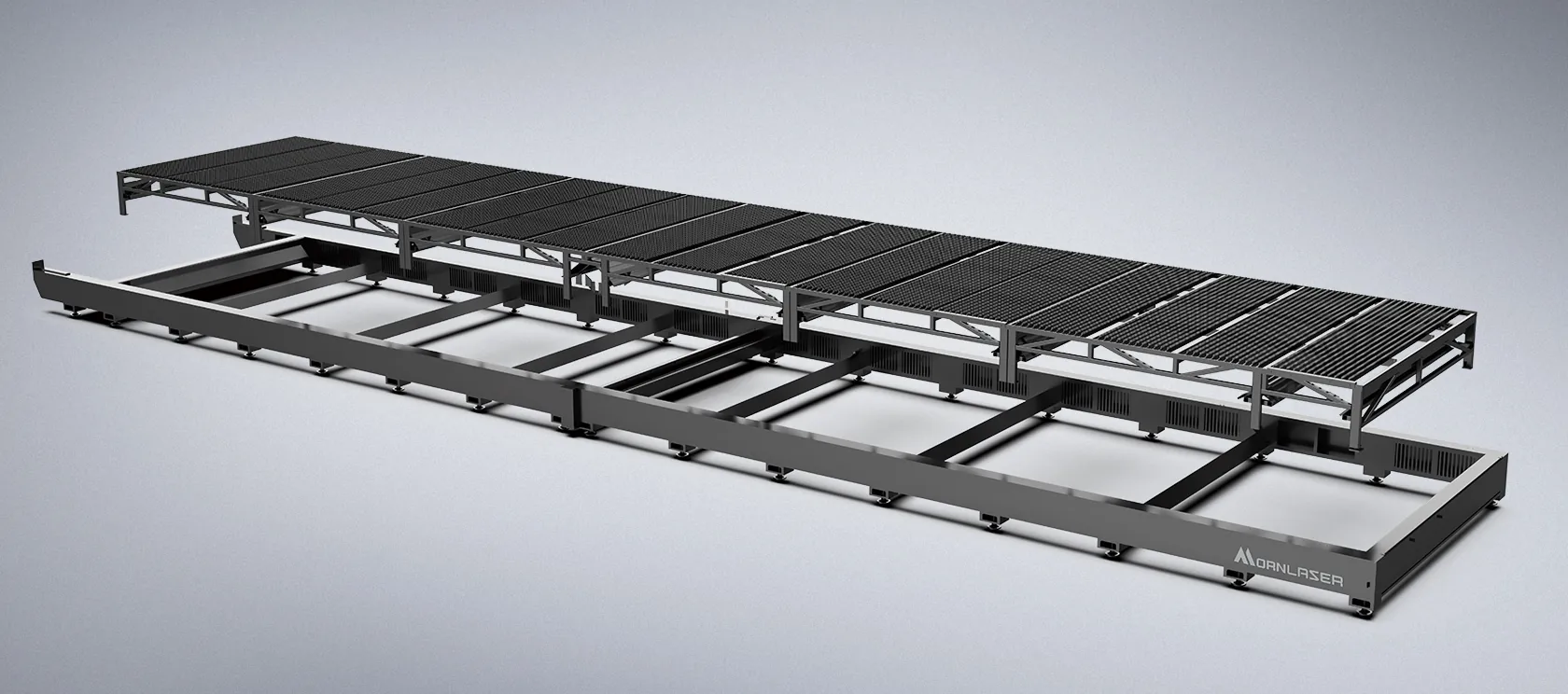

The worktable is separated from the main machine bed, achieving both physical thermal isolation and load-path decoupling, thereby enabling a balance between high dynamic performance and high load capacity

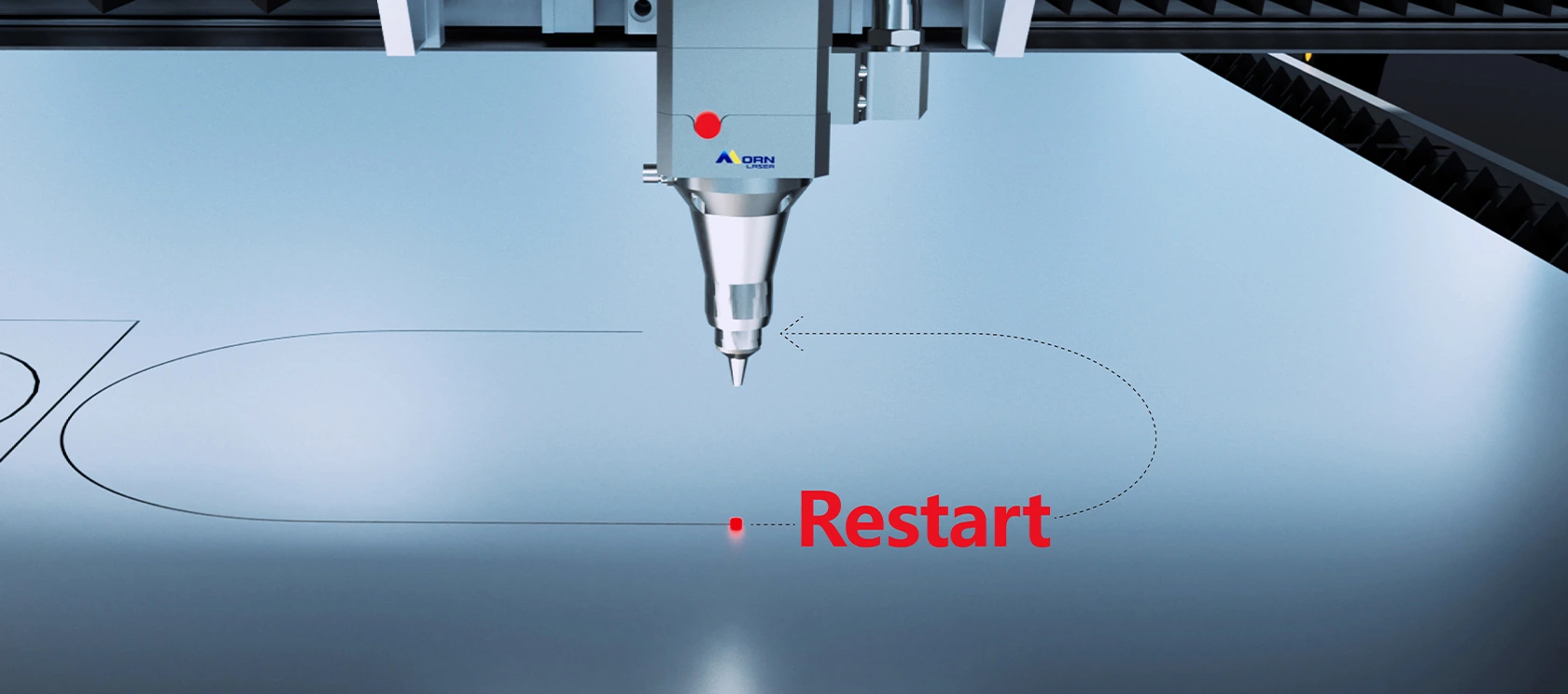

The intelligent power-off memory function automatically records the cutting position and locates the breakpoint after restart, allowing cutting to resume seamlessly and minimizing material waste.
Model | FD6025 | FD8025 | FD12025 | FD14031 |
|---|---|---|---|---|
| 6100mm×2600mm | 8100mm×2600mm | 12200mm×2600mm | 14200mm×3200mm | |
Laser Power | 3-40kW | 3-40kW | 20-40kW | 60kW |
Bevel Cutting | +45° (Expandable) | +45° (Expandable) | +45° (Expandable) | +45° (Expandable) |
Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.05mm |
Max. Linkage Speed | 80m/min | 80m/min | 80m/min | 110m/min |
| 0.8G | 0.8G | 0.8G | 1.4G |
