High-power cutting head produces accurate, burr-free cuts, enhancing efficiency and consistency.

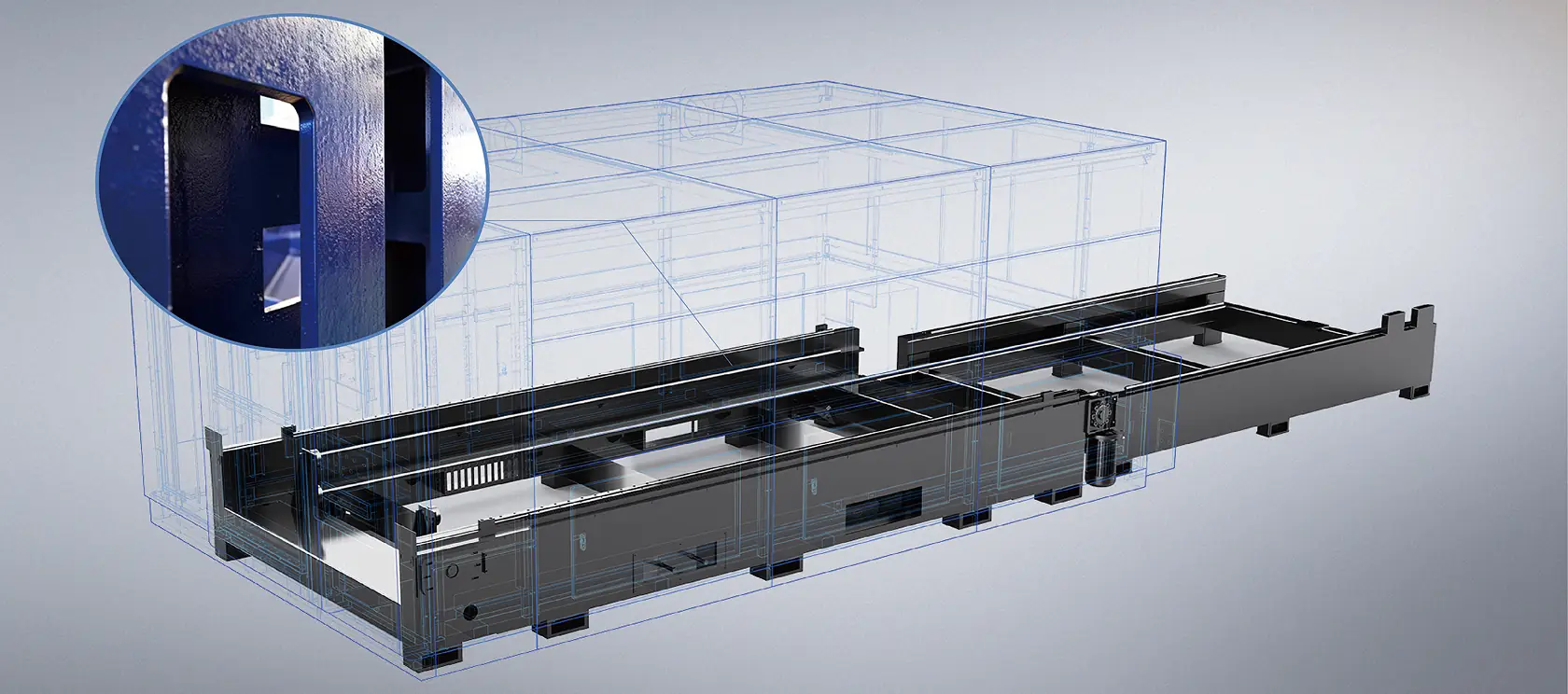

Stress-relieved through high-temperature annealing to ensure permanent resistance to deformation.
Intelligent Control Console
One-Click Nesting Beginner-Friendly

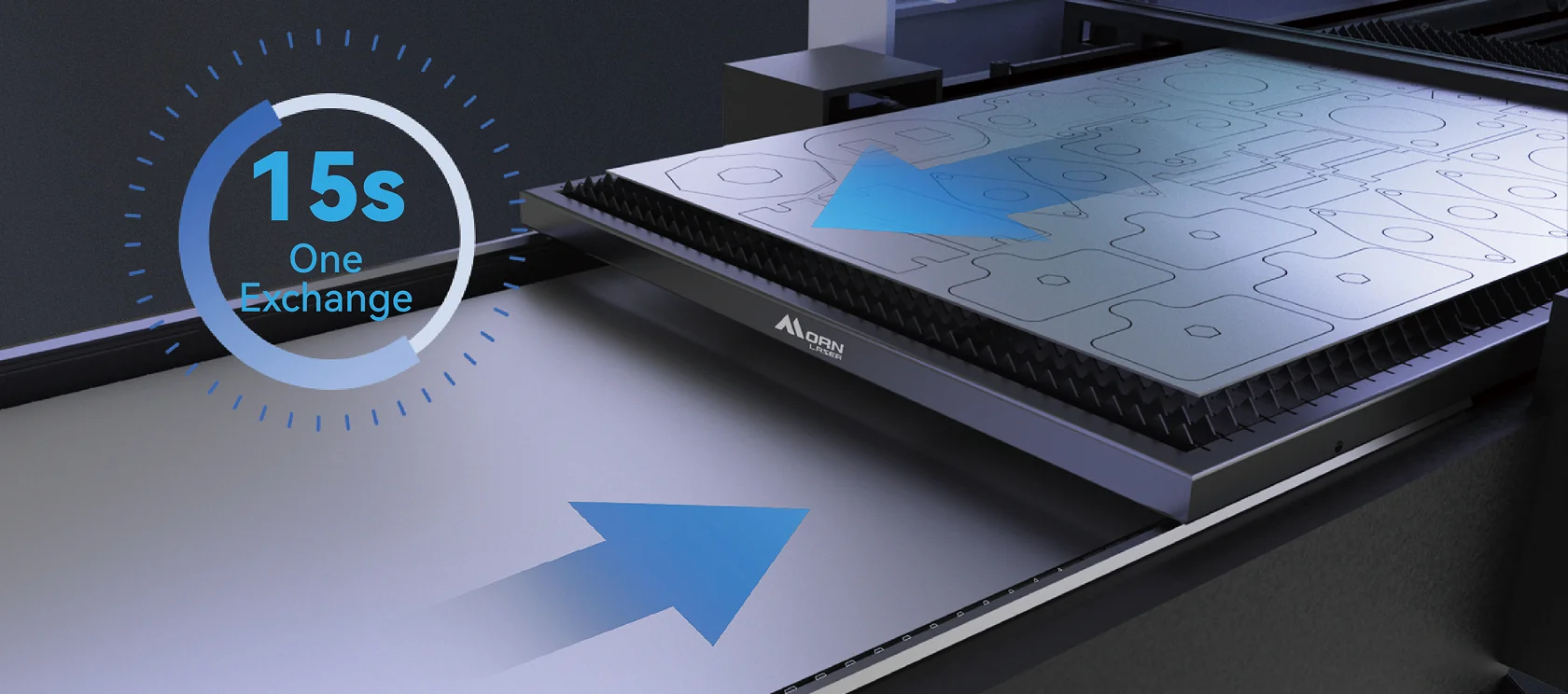

Dual tables alternate automatically, enabling simultaneous cutting and loading to minimize downtime and maximize productivity.
Enables flexible and efficient material handling with simultaneous dual or single input/output operations.
Stress-relieved through high-temperature annealing to ensure permanent resistance to deformation.

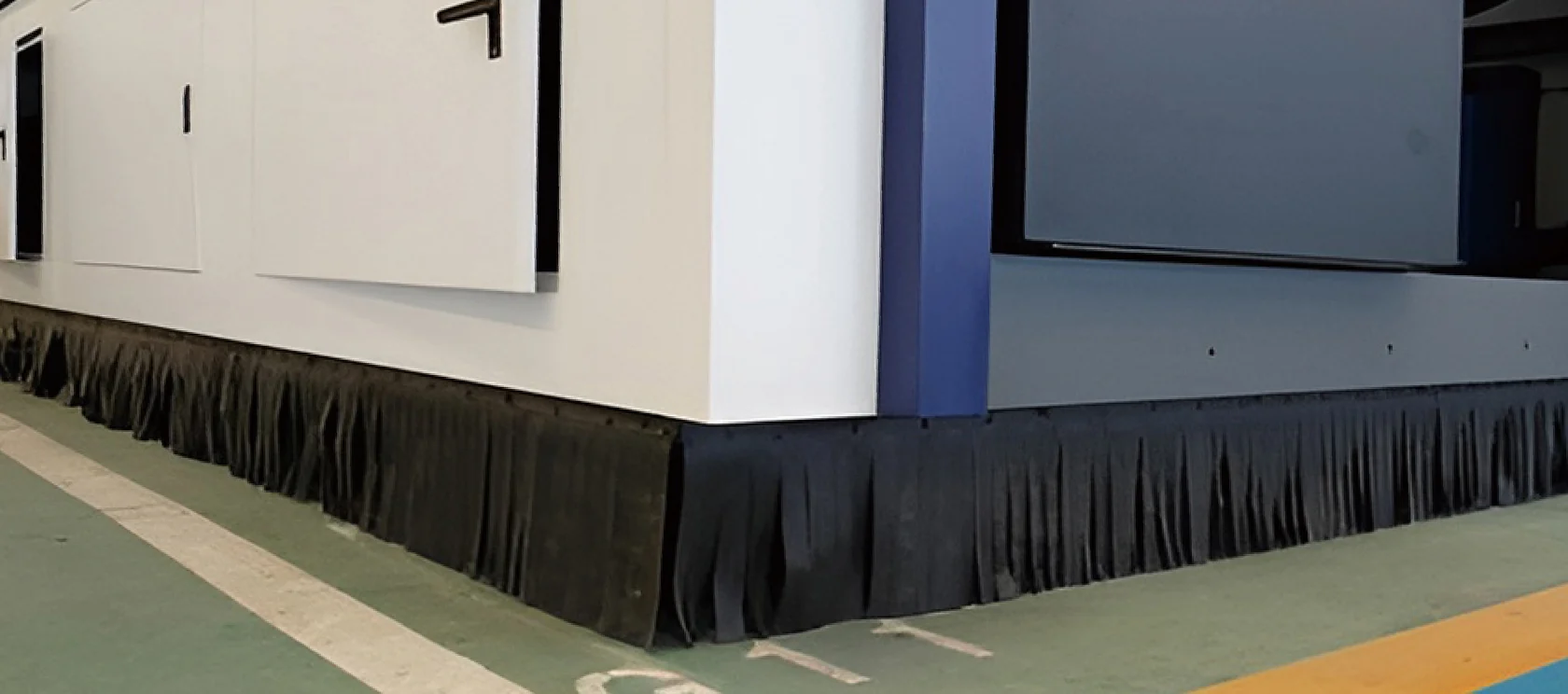

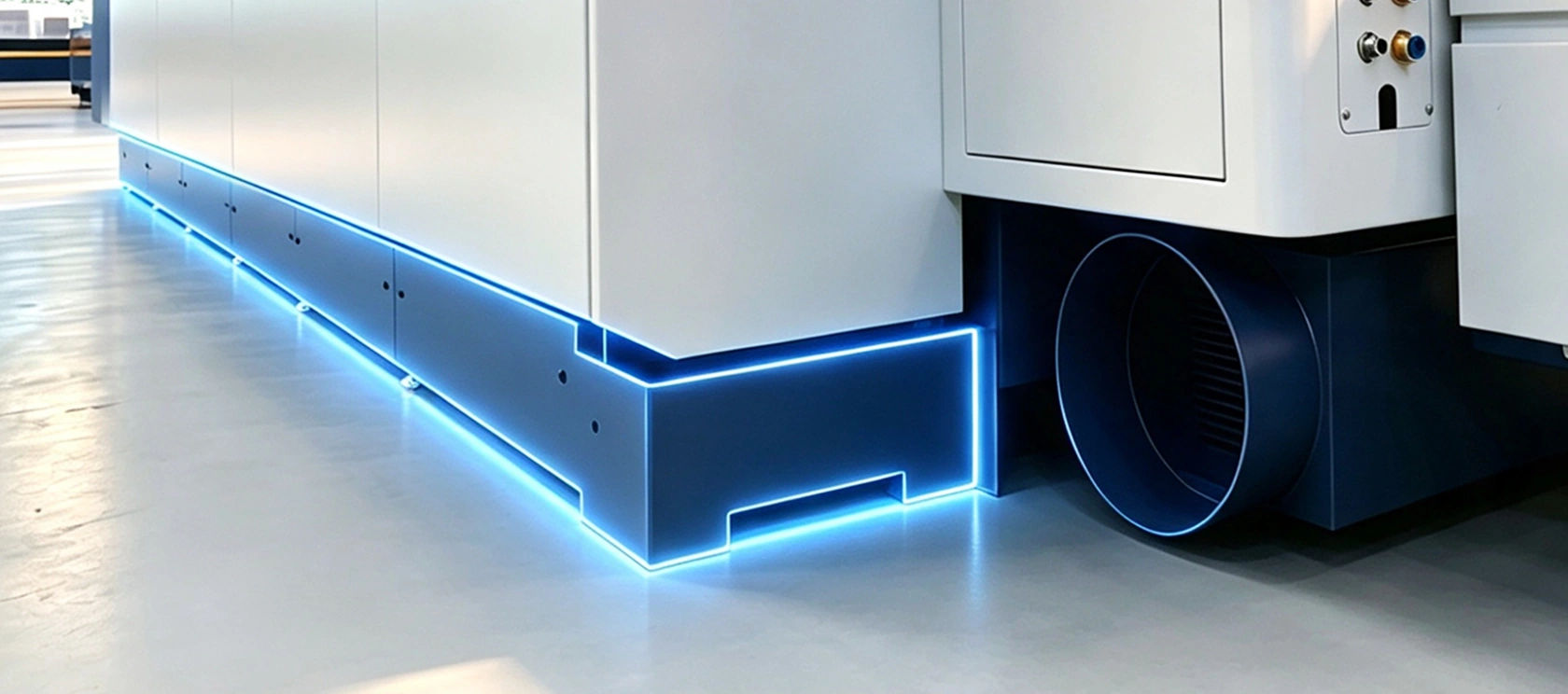

Enclosure D is equipped with a sealing fireproof curtain at its base, which effectively prevents cutting splatter, fumes, and dust from escaping.

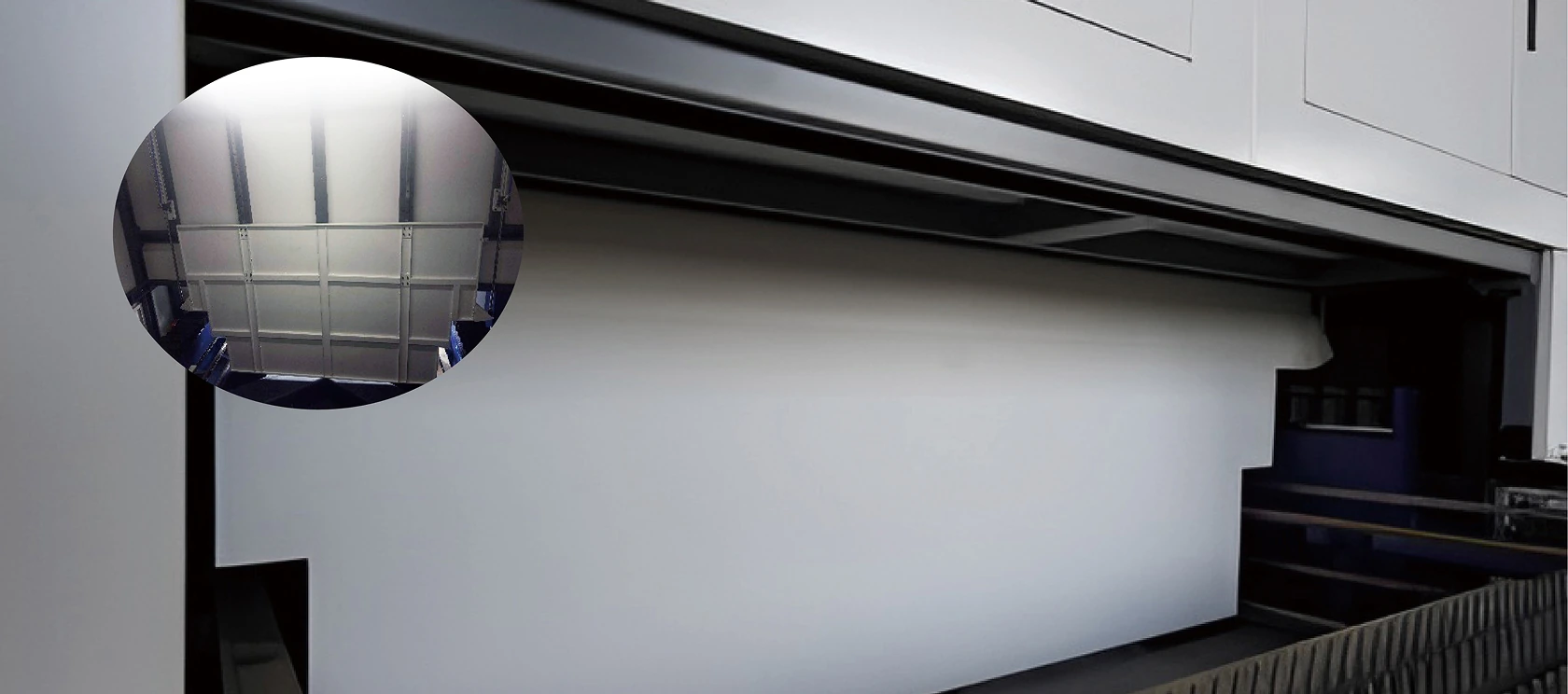

The cutting The rear of Enclosure B is equipped with an automatic lift door, effectively preventing smoke and dust from escaping.area features a zoned fume extraction design.

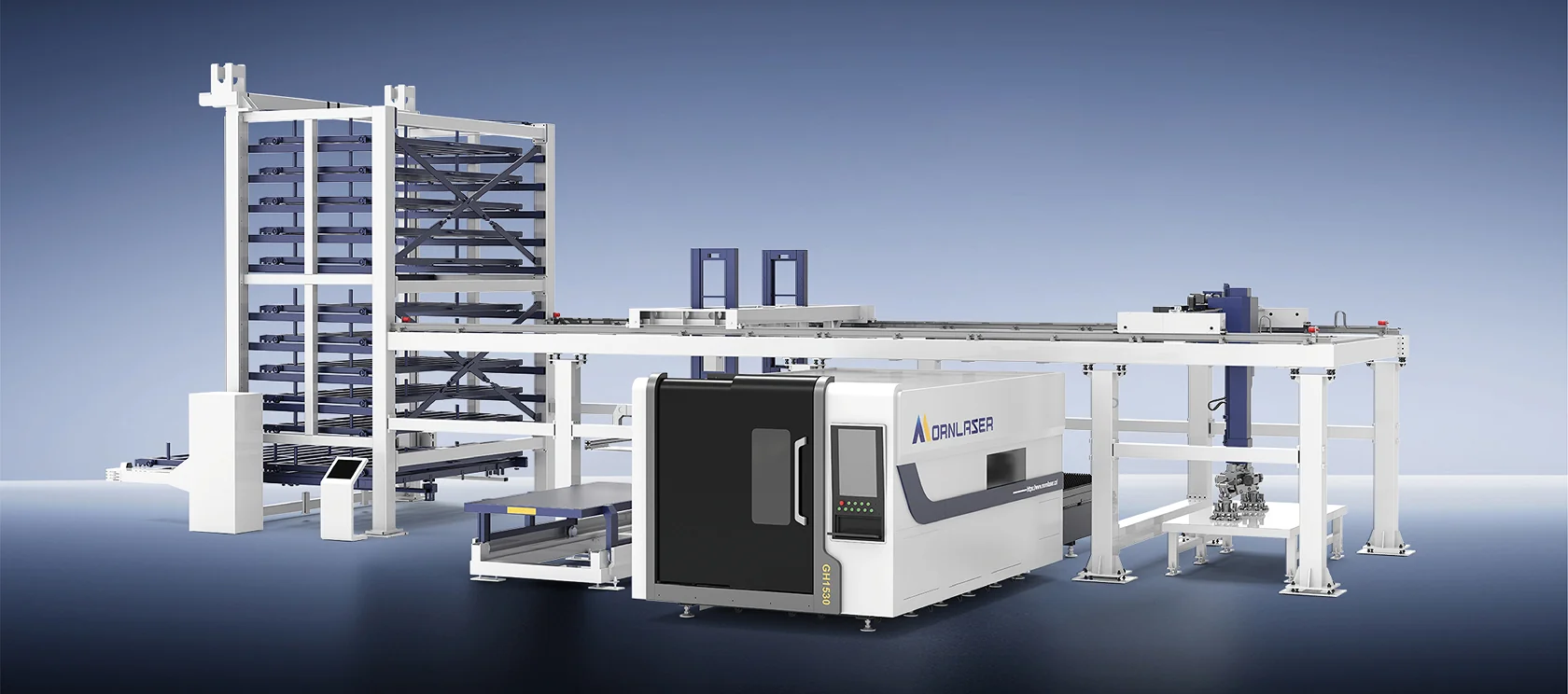

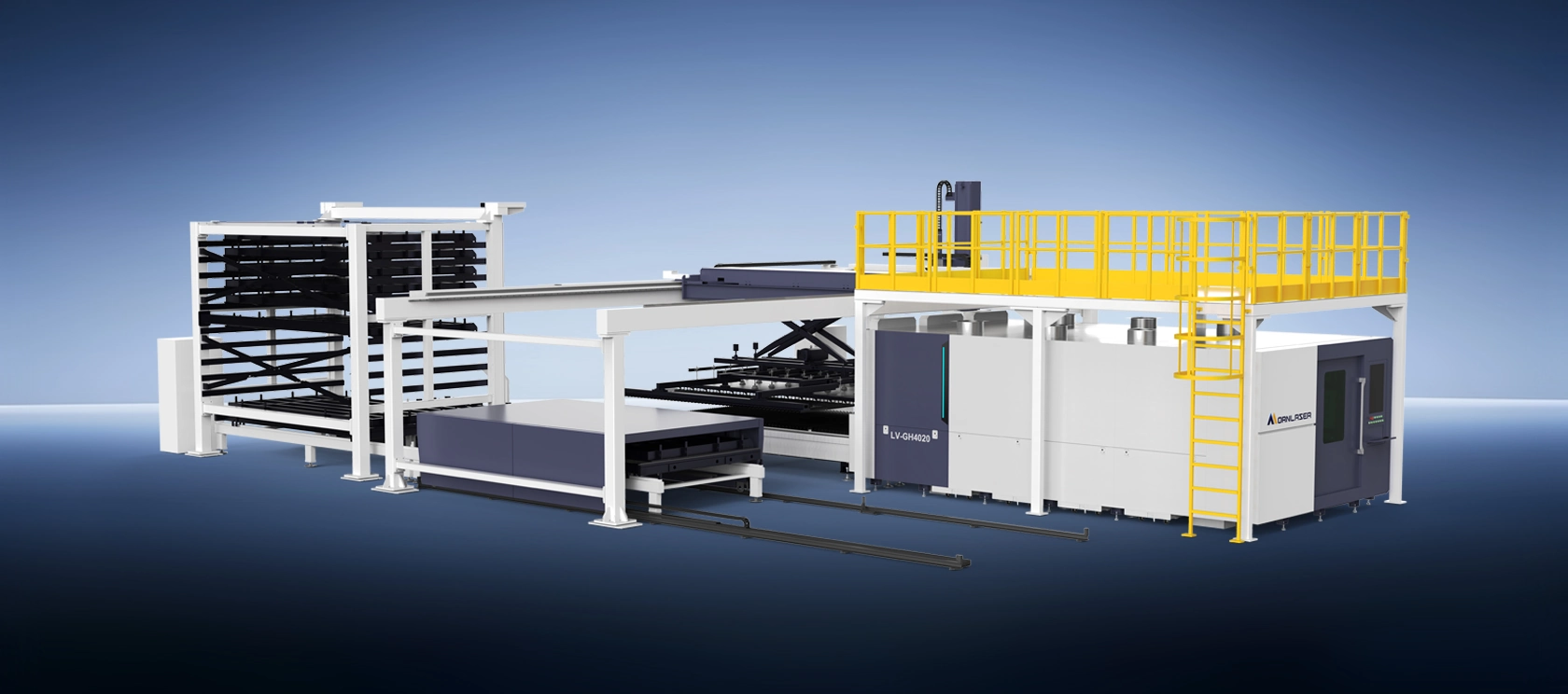

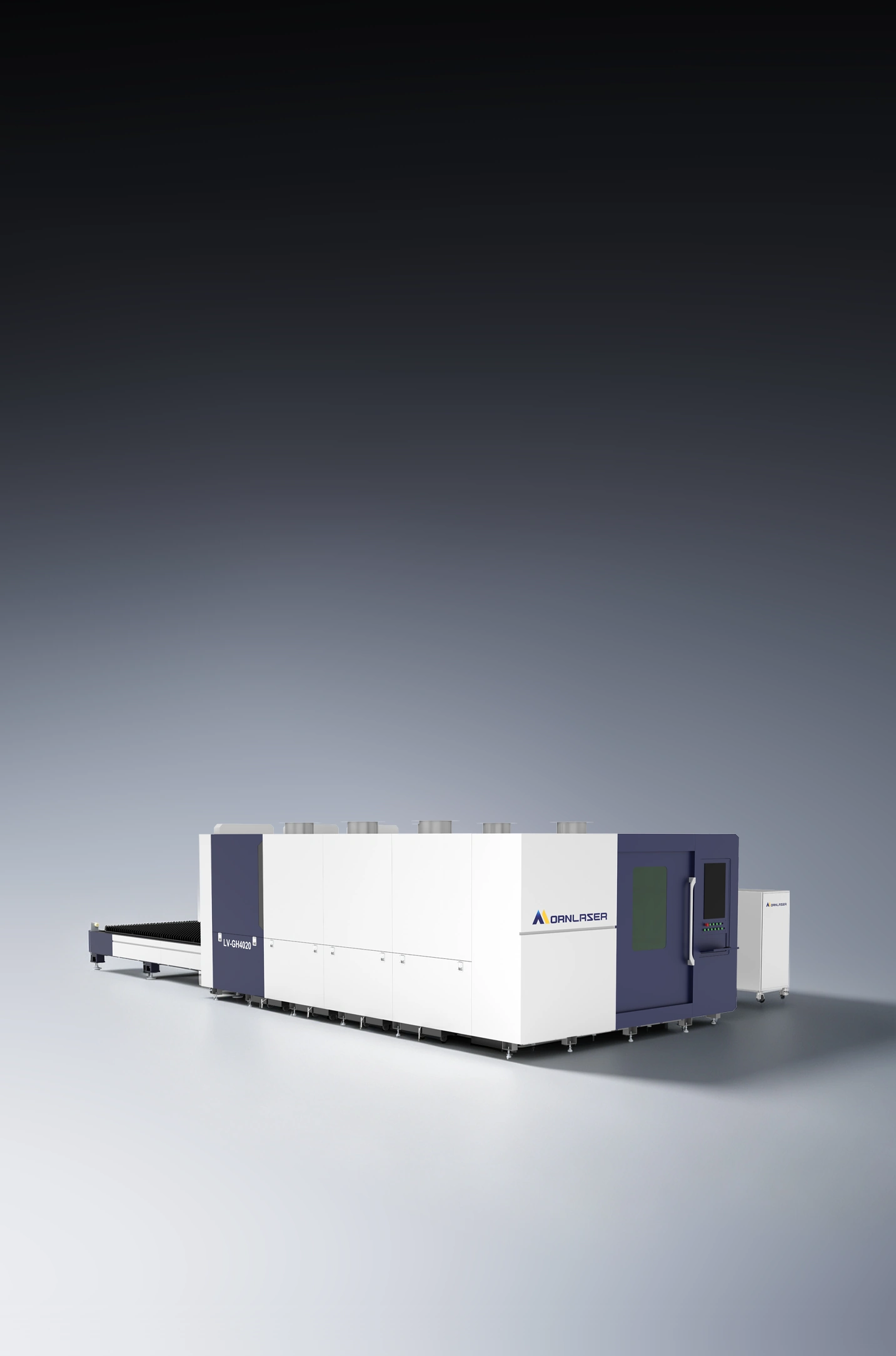

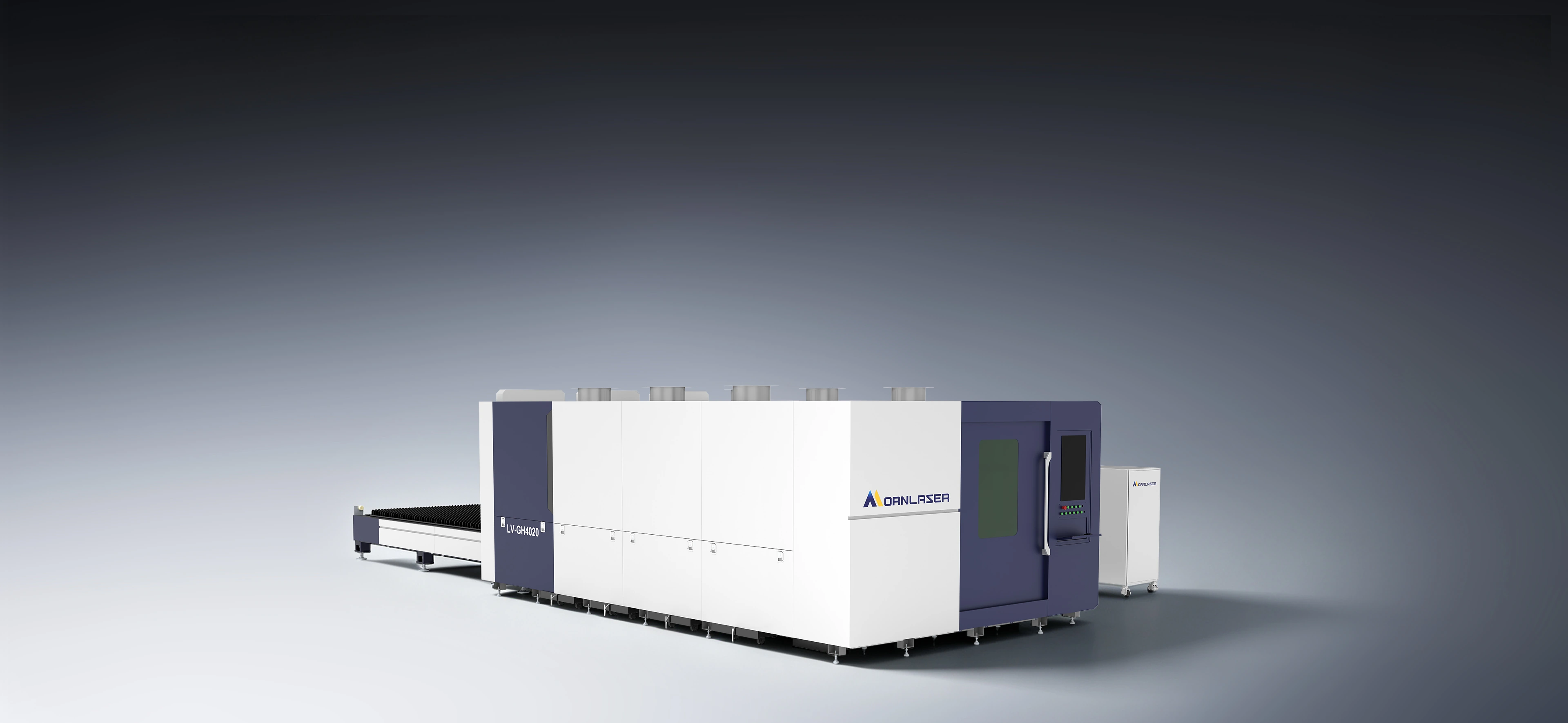

The GH Series integrates seamlessly into automated production lines, reducing manual handling, boosting processing efficiency, and streamlining internal logistics.
Model | GH3015 | GH4020 | GH6015 | GH12025 | GH14031 |
|---|---|---|---|---|---|
Cutting Area | 1530x3050mm | 2100×4100mm | 2600×6100mm | 12200×2600mm | 14200×3200mm |
Laser Power | 3-20KW | 3-20KW | 3-20KW | 30-40KW | 30-40KW |
Re-positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
Max. Linkage Speed | 180m/min | 180m/min | 180m/min | 180m/min | 180m/min |
Max. Acceleration | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
Max. Net Load per Layer | ~1700kg | ~3200kg | ~11900kg | ~11900kg | ~34000kg |
