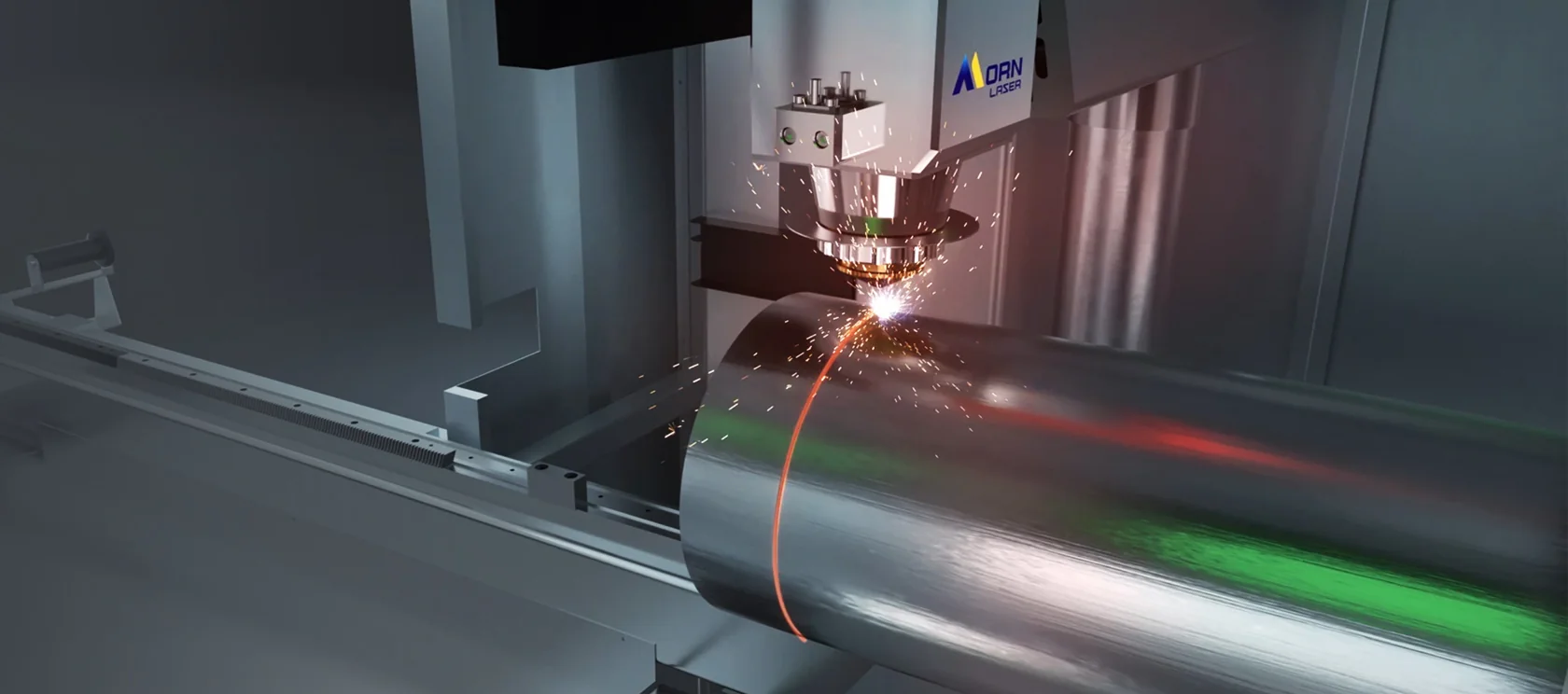

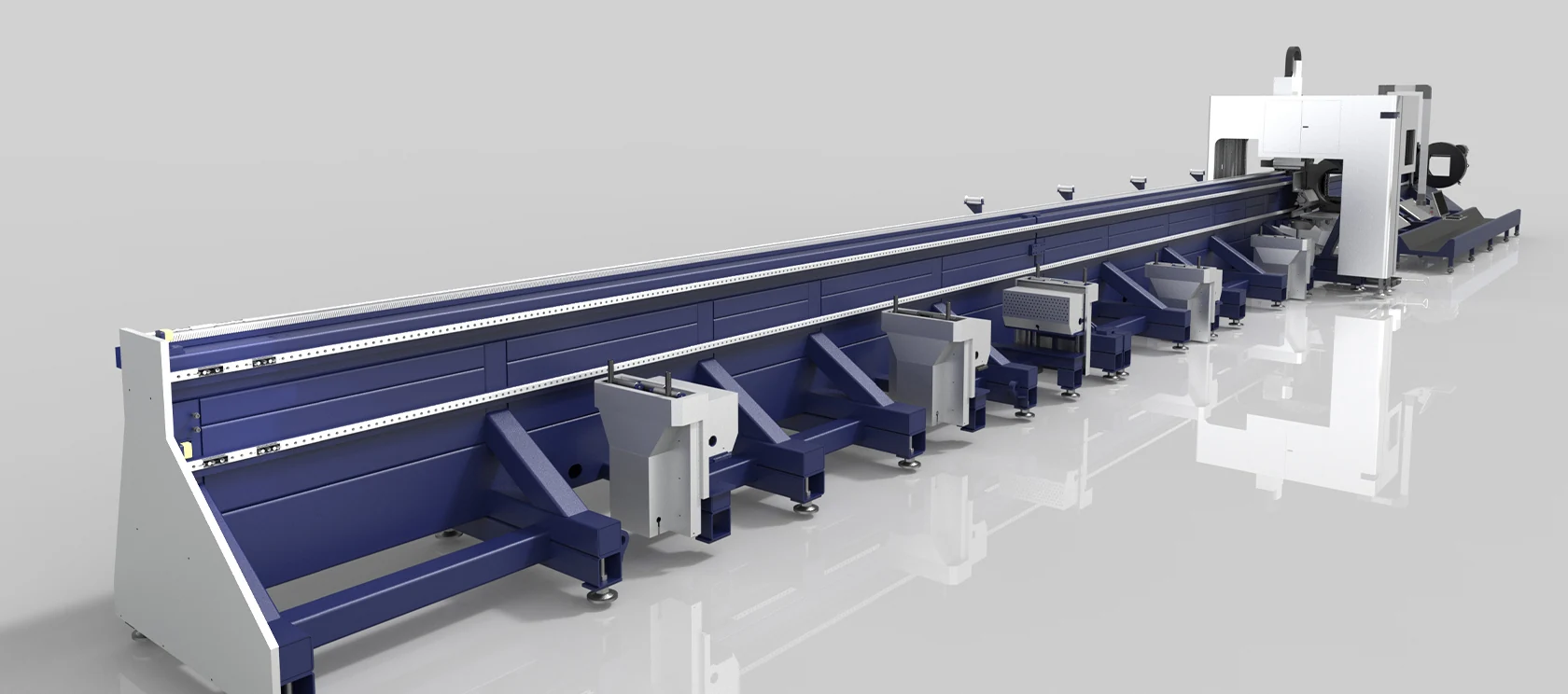

The advanced three-chuck structure ensures stable clamping and synchronous rotation for higher cutting precision. It significantly improves processing efficiency, especially for long and heavy tubes.
Intelligent one-click control enables fast, precise tube positioning, reducing manual input while improving consistency and setup efficiency.
Optimized chuck coordination minimizes tail material length, maximizing raw material utilization. This reduces waste and lowers overall production costs.

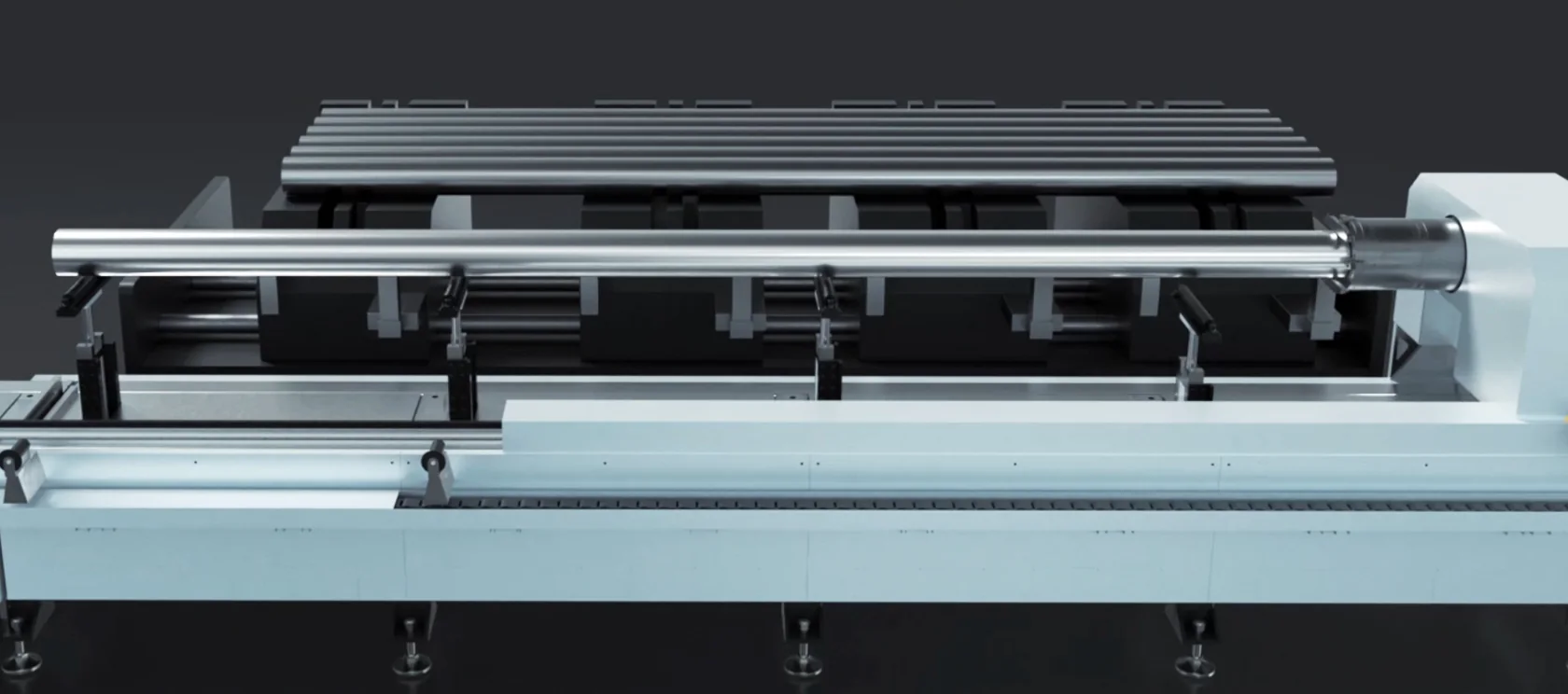

The automated loading system streamlines material handling for continuous production. It improves efficiency, reduces labor intensity, and ensures stable batch processing.
Low-center-of-gravity side-mounted design enables easier loading, while the heat-treated heavy-duty bed ensures long-term stability and deformation-free performance.

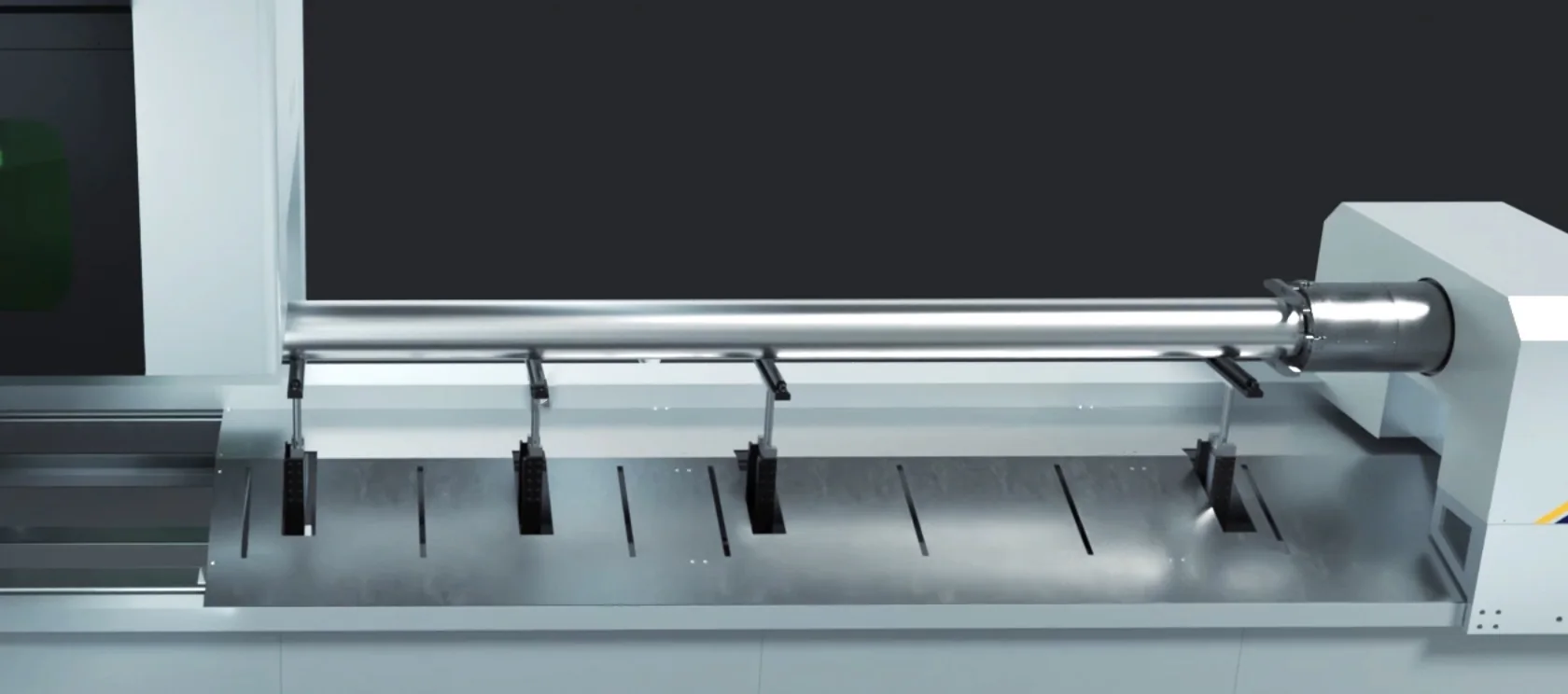

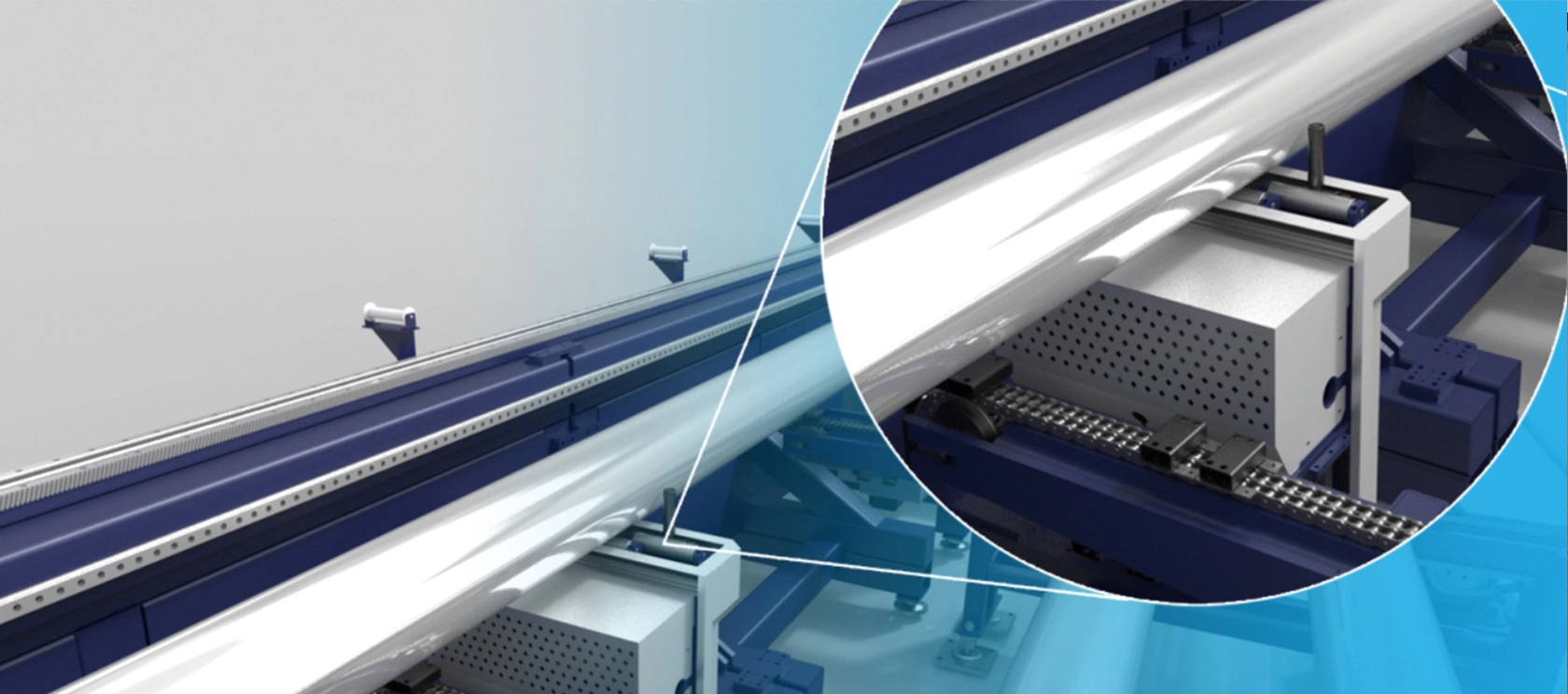

The independent follow-up support system automatically adapts to tube diameters, preventing sagging and ensuring stable, high-precision processing of long and heavy tubes.

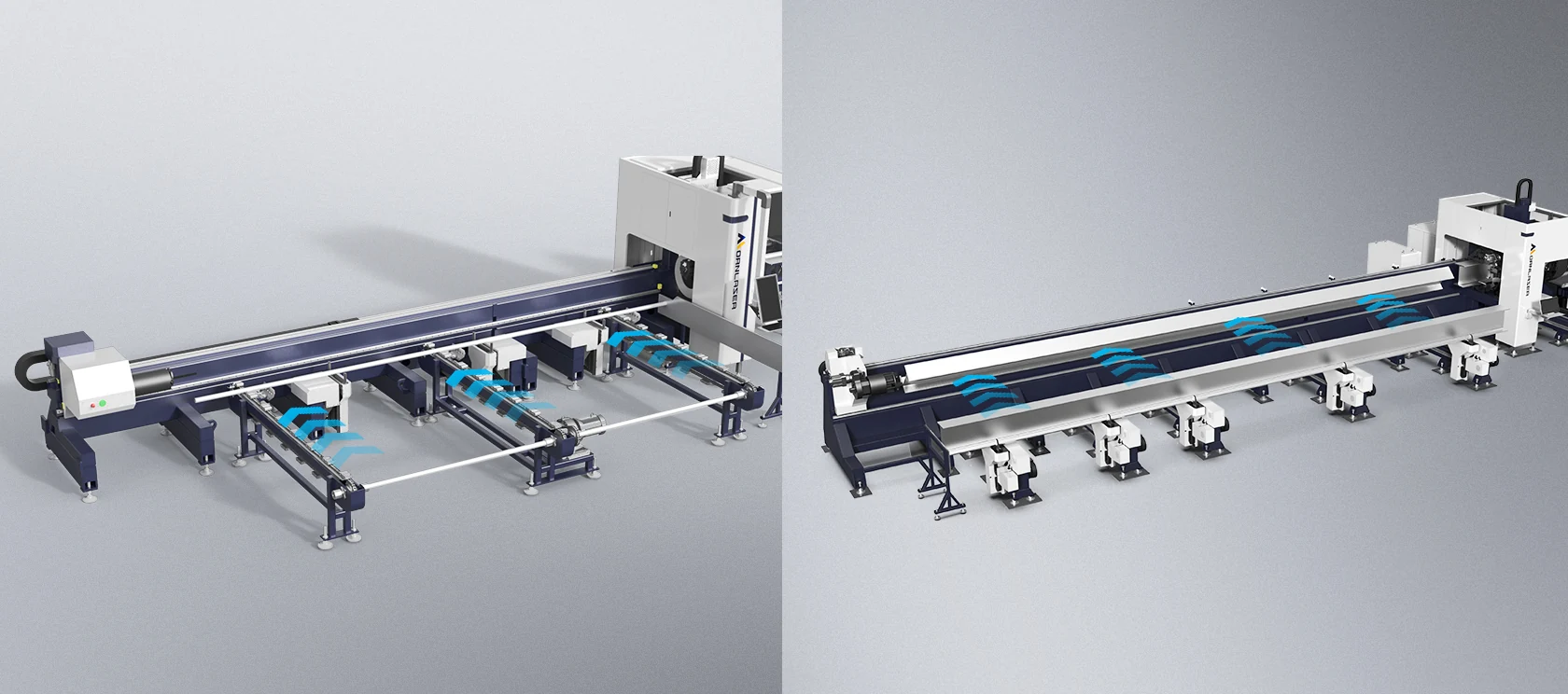

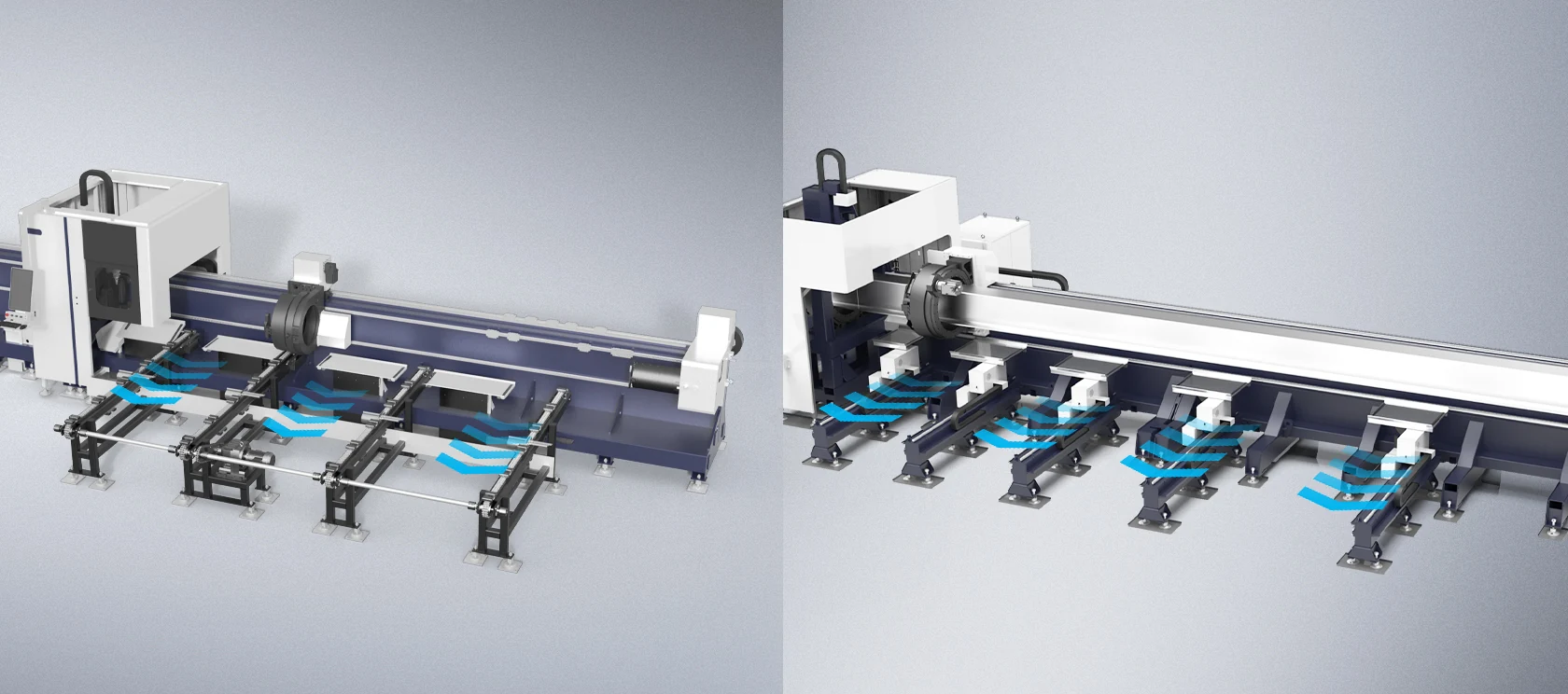

Seamlessly feeds multiple tubes with high efficiency and minimal manual intervention, ensuring stable positioning for continuous, high-speed production while reducing downtime and improving overall processing consistency.
Automatically collects and sorts finished tubes to reduce labor intensity, improving workflow efficiency while protecting workpieces from damage and enabling smoother, more organized production flow.
Model | 240 Chuck | 360 Chuck | 450 Chuck | 520 Chuck |
|---|---|---|---|---|
Laser Power | 3000W-12000W | 3000W-20000W | 3000W-20000W | 3000W-20000W |
Bevel Cutting Angle | ±45° | ±45° | ±45° | ±45° |
Round Tube Diameter | Φ15-Φ240mm | Φ20-Φ360mm | Φ20-Φ450mm | Φ20-Φ500mm |
Square Tube Diameter | □15*15-□240*240mm | □20*20-□360*360mm | □50*50-□450*450mm | □40*40-□500*500mm |
Max. Tube Weight | 300kg | 1500kg | 1500kg | 2200kg |
Max. Chuck Speed | 110r/min | 110r/min | 80r/min | 40r/min |
Max. Linkage Acceleration | 0.8G | 0.8G | 0.5G | 0.3G |
