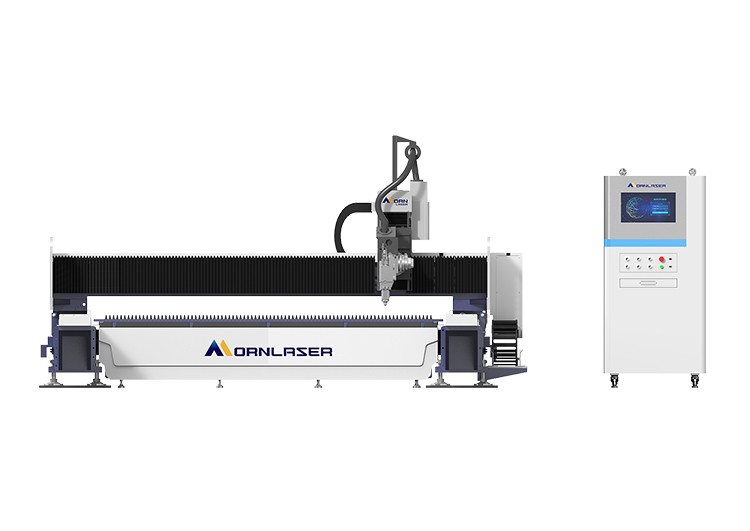

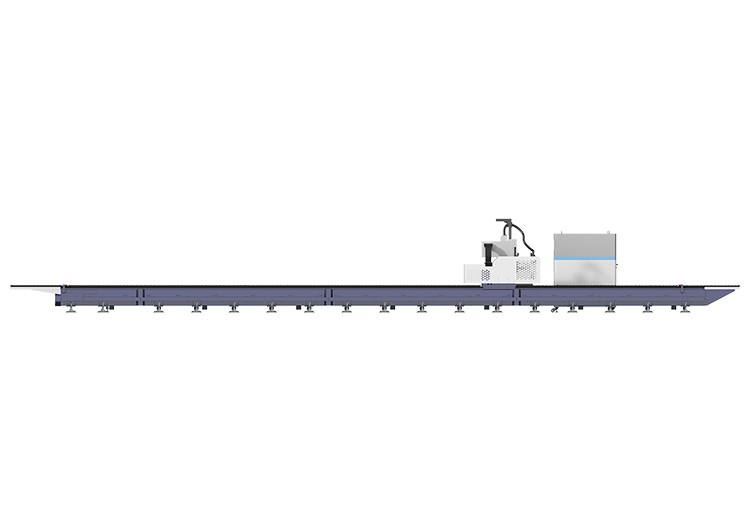

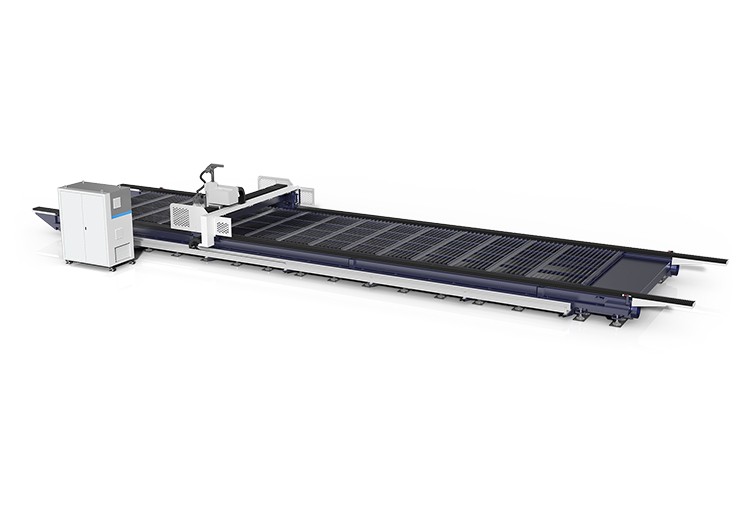

Fiber Laser Bevel Cutting Machine
Fiber Laser Bevel Cutting Machine
Fiber Laser Bevel Cutting Machine
Fiber Laser Bevel Cutting Machine
Fiber Laser Bevel Cutting Machine
Fiber Laser Bevel Cutting Machine
Fiber Laser Bevel Cutting Machine
Fiber Laser Bevel Cutting Machine

Fiber Laser Bevel Cutting Machine

The Bevel Laser Cutting Machine is specially engineered for users who demand more than just clean cuts—it delivers precise bevel angles for welding prep and complex component fabrication. Whether you’re working with carbon steel, stainless steel, or aluminum plates, this advanced bevel cutting system enables superior edge quality and consistency, minimizing post-processing and boosting overall productivity.

Features

- The machine supports power configurations from 6kw to 60kw, ensuring optimal performance for middle and thick plate cutting.

- Supports bevel cuts at various angles (K, V, Y, and X), enabling precise weld prep directly from the machine with no extra grinding or processing.

- A 5-axis CNC system enables precise angle cutting and smooth contour following with consistent quality.

- Equipped with a high-precision rack and pinion drive, the machine delivers excellent cutting stability.

- The intelligent bus system offers stability and reliability, easy commissioning, and safe operation.



Application Scenarios

The Bevel Laser Cutting Machine is widely used in:


Shipbuilding Industry

Cutting of hull panels, bulkheads, and rib frames with beveled edges for perfect seam welding.


Steel Structure Fabrication

Bevel cutting large beams, trusses, and gusset plates for stronger structural joints.


Heavy Equipment Manufacturing

Cutting load-bearing components and support brackets with weld-ready angles.


Pressure Vessel & Pipeline

Bevel preparation for pressure-rated tanks and flange connections, improving safety and reliability.


Railway & Transit

Cutting chassis parts and floor panels with custom bevels to meet strength requirements.

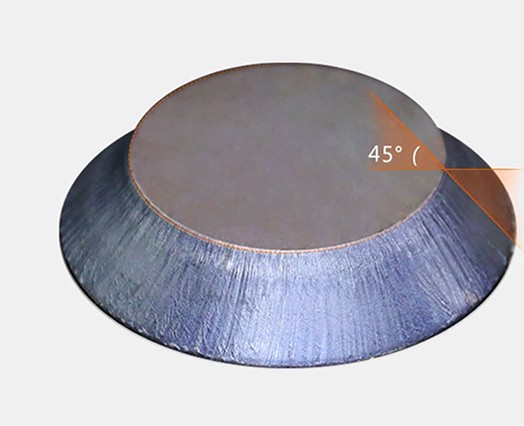

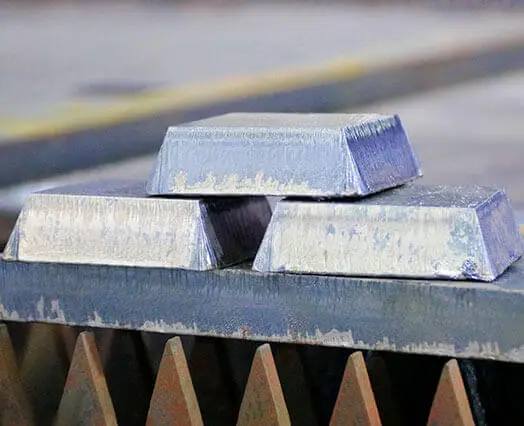

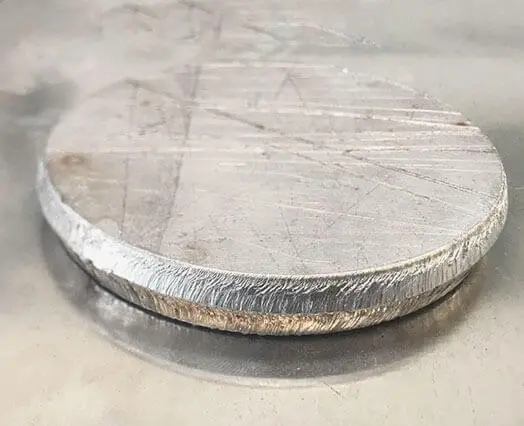

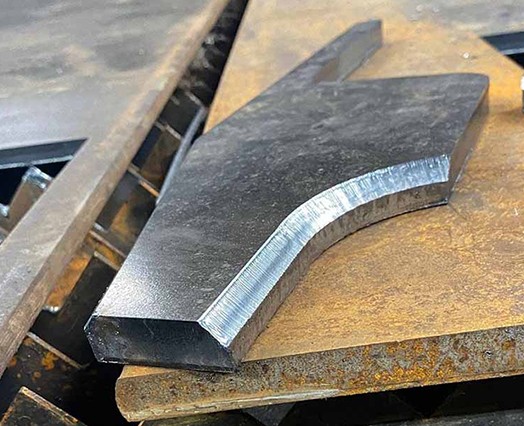

Samples
Technical Specs

Model

FA3015

FA4015

FA6015

FA6025

FA12025

FA14031

Working Area
(Customizable)

5' × 10'

5' × 13.5'

5' × 20'

8.5' × 20'

8.5' × 40'

10.5' × 46.6'

Laser Power

2000W/3000W/4000W/6000W/12000W/20000W/30000W/40000W/60000W

Bevel Angle

±45° (Expandable)

Repeat Positioning Accuracy

±0.02mm

Maximum Idle Speed

393.7’/min

Maximum Acceleration Speed

1G

Power Supply

AC380V AC220V 60HZ
