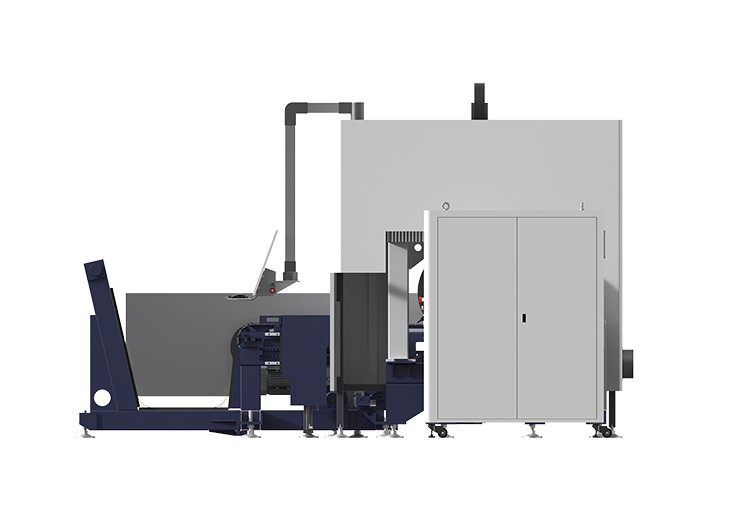

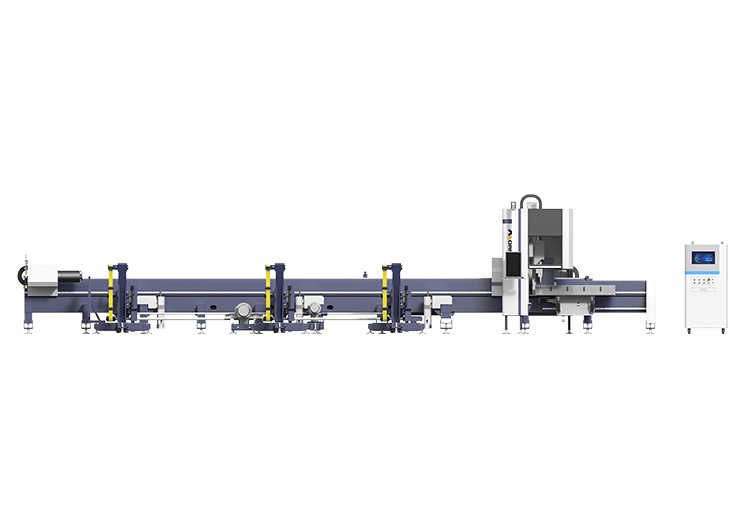

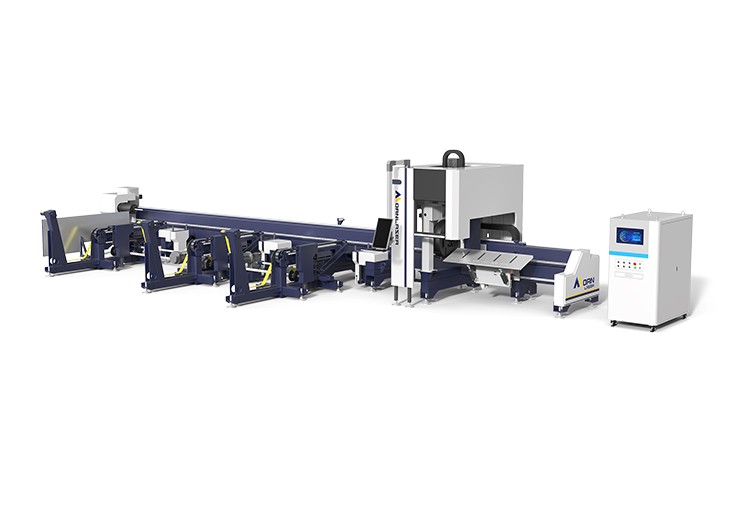

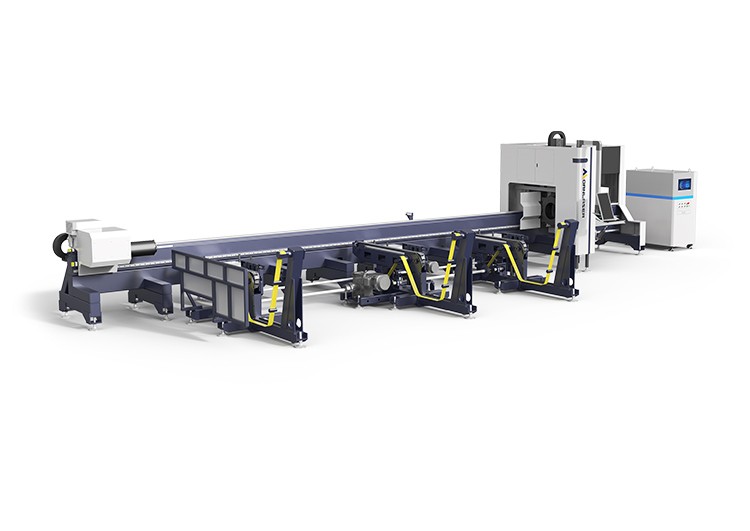

Two-chuck Tube Laser Cutting Machine
Two-chuck Tube Laser Cutting Machine
Two-chuck Tube Laser Cutting Machine
Two-chuck Tube Laser Cutting Machine
Two-chuck Tube Laser Cutting Machine
Two-chuck Tube Laser Cutting Machine
Two-chuck Tube Laser Cutting Machine
Two-chuck Tube Laser Cutting Machine

Two-chuck Tube Laser Cutting Machine

The two chucks fiber laser tube cutting machine is purpose-built for efficient, high-speed cutting of various pipe and tube profiles — offering you the perfect balance between performance and flexibility.



Whether you’re processing round, square, rectangular, or oval tubes, this dual-chuck laser solution delivers tight tolerances, clean edges, and consistent output — all with less material waste and lower operating costs.


Features

- The double chuck system ensures secure, non-slip pipe holding during high-speed cutting. This enables accurate alignment, even when cutting long or heavy tubes.

- With automatic centering and servo-driven feeding, the machine maintains precision and saves time during batch processing. Operators benefit from reduced manual handling and faster setup.

- Side-mounted machine frame design lowers the center of gravity, enhancing structural stability. It also simplifies loading and unloading, making operation and maintenance more convenient.

- Choose from various power options (1000W–12000W) to suit your material type and thickness.

- The intuitive control system enables easy parameter adjustments, nesting, and real-time monitoring, allowing operators to run complex programs efficiently and with ease.

- Automatic feeding system simplifies large-volume processing. Minimize downtime and reduce manual labor costs with seamless integration.




Samples

Tube laser cutting machines can cut a variety of metal materials, including stainless steel, carbon steel, iron, aluminum, and galvanized sheets. They are capable of processing square tubes, round tubes, I-beams, and other shaped pipes.


Technical Specs

Model

N-H62

Pipe Diameter

φ0.065’-0.53’/ 0.66’/1.15’/1.64’

Pipe Length (Customizable)

9.84’-49.21’

Laser Power

1000W/1500W/2000W/3000W/4000W/6000W/12000W

Max. Chuck Rotating Speed

246.06’/min

Max. Acceleration Speed

0.8 G
