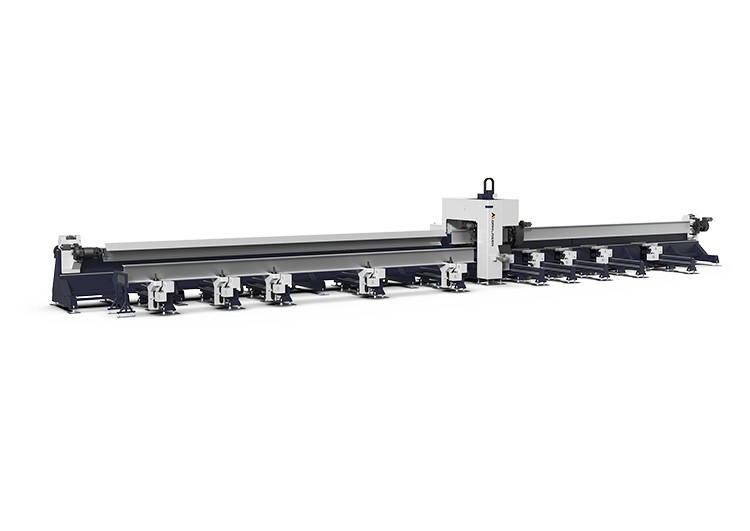

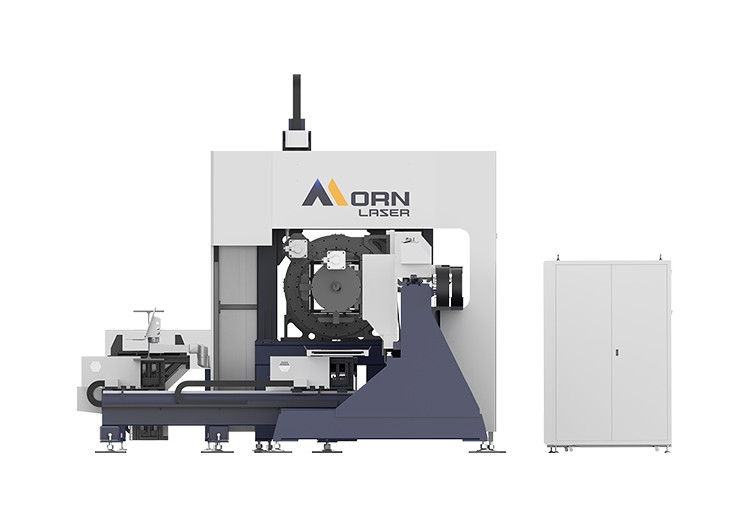

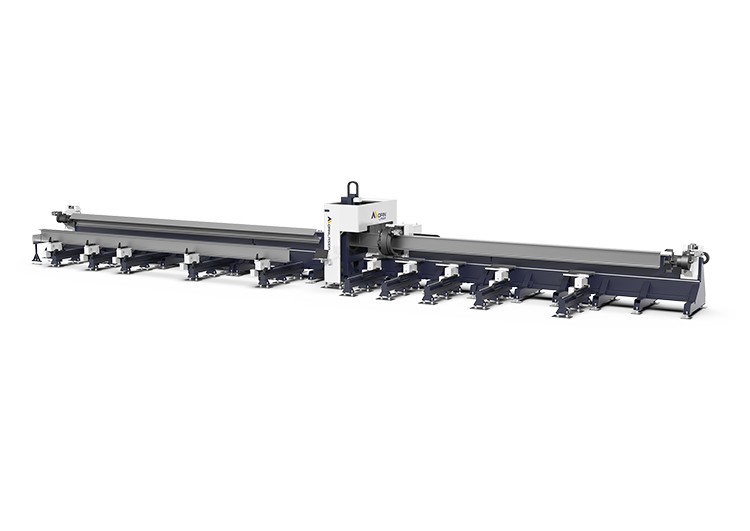

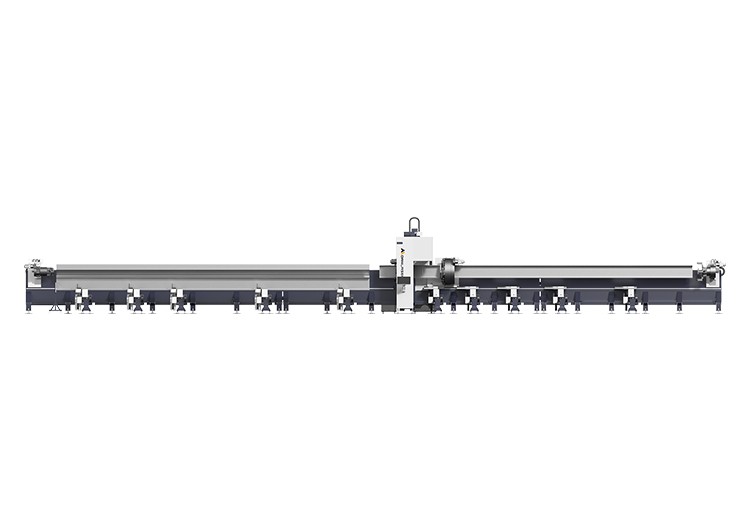

Our 4-chuck automatic laser tube cutting machine offers the perfect combination of stability, precision, and automation for long-length and heavy-duty pipe processing. This high-performance laser cutting system is built for speed, accuracy, and minimal material waste — ideal for manufacturers that demand efficiency and reliability.
Whether you're working with round, square, or complex profile tubes, this automatic loading and unloading laser pipe cutting machine delivers seamless, zero-tail cutting operations from start to finish.
Side-mounted Working Bed Structure
- The machine adopts a side-mounted bed structure that lowers the center of gravity during loading and cutting, improving the overall stability of the machine.
- This layout allows easier access during loading and unloading, especially for long and heavy tubes, improving both operator safety and handling efficiency.
4-Chuck System with Zero Tail Cutting
- The innovative four-chuck clamping system ensures ultra-stable positioning and rotation, particularly for long and large-diameter tubes. The four-chuck structure provides superior clamping force and balance:
- True zero tail cutting, reducing material waste and maximizing material utilization.
- Enhanced stability for long and heavy metal pipes
Optional Bevel Cutting Head
For customers needing angled cuts for welding or joint preparation, the machine can be optionally equipped with a bevel cutting head, allowing clean and accurate bevels up to ±45°. It supports V, Y, and K grooves, simplifying downstream welding and reducing processing time.
Smart CNC Control System
The machine integrates a powerful CNC pipe cutting software, specifically designed for fiber laser tube processing. Features include:
- Real-time monitoring & error alert
- Nesting and toolpath optimization to reduce waste
- Multiple metal pipe types and cutting plans
- Advanced functions like auto-focus, FlyCut, and smart piercing
Cutting Materials and Samples:
The four chucks tube laser cutting machine supports round, square, rectangular, oval, D-shaped, and custom-shaped tubes, offering a versatile solution for diverse manufacturing needs.
Model
L123+12
Pipe Diameter
φ0.065’-0.53’/ 0.66’/1.15’/1.64’
Pipe Length (Customizable)
9.84’-49.21’
Laser Power
1000W/1500W/2000W/3000W/4000W/6000W/12000W
Max. Chuck Rotating Speed
360.89’/min
Max. Acceleration Speed
1 G
The Whole Cover Fiber Laser Cutting Machine is engineered for manufacturers who prioritize safety, cleanliness, and cutting performance. Its full protective enclosure not only ensures a sealed environment for safer operation but also contributes to better dust and fume control—making it ideal for production facilities with high safety or environmental standards
If you're looking for a compact, accurate, and easy-to-use fiber laser cutting machine for thin or small-format metal sheets, this model is your ideal solution. Our high precision metal laser cutting machine is designed specifically for small to medium-format metal sheets, offering unbeatable speed, stability, and quality in a space-saving footprint.

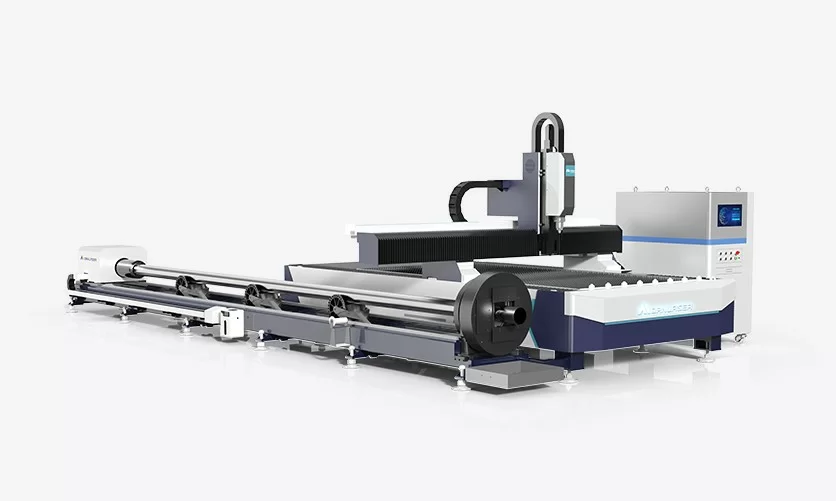

The Sheet and Tube Fiber Laser Cutting Machine is designed to meet the growing demand for flexible and multi-purpose metal processing. By integrating both sheet cutting and tube cutting into a single compact system, this all-in-one laser cutter maximizes space efficiency, reduces equipment investment, and increases productivity.
Whether you’re processing stainless steel sheets for industrial enclosures or cutting pipes for fitness equipment or automotive parts, this machine delivers unmatched flexibility, accuracy, and efficiency.
